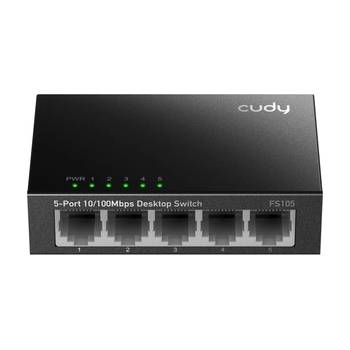

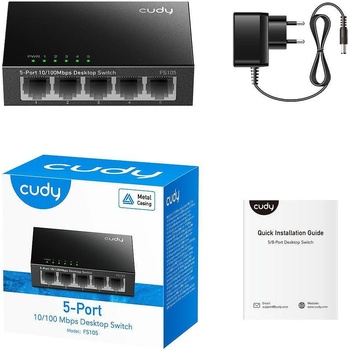

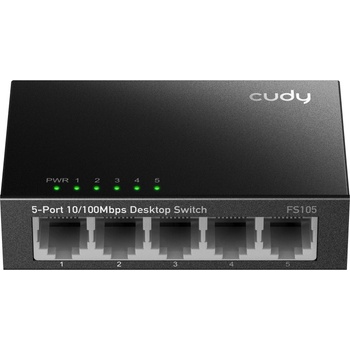

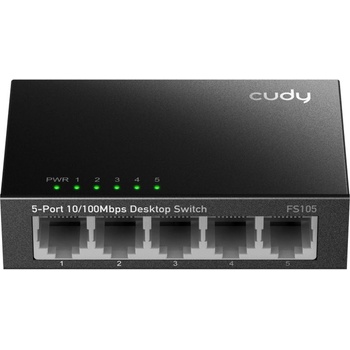

Cudy FS105

Cudy FS105

A 5-FE switch with metal casing ideal for wired network expansion in home and office environments.

• 5× Fast Ethernet Ports
• Max 0.9W, Idle 0.35W
• Desktop, Wall-Mount
• Metal Casing
• 86.5×53×23 mm (3.41×2.09×0.91″)

Interface s 10/100 Mbps RJ45 Ports 5  LED

• Power
• Link/ACT of Each Ethernet Port

  Power Input DC JackPerformance Copper Speed and Distance

• Cat. 3 or higher cable: 100 meters at 10 Mbps
• Cat. 5 or higher cable: 100 meters at 100 Mbps

  MAC Address Table 512  Max Switching Capacity 1 Gbps  Max Forwarding Rate 0.744 Mpps  Packet Buffer 448 KbitPower Basic Power Saving True  Power Methods DC  DC 5V 0.55A  Max Power Consumption 0.9W  Idle Power Consumption 0.25WSwitching 802.3 Protocols

• 802.3i 10BASE-T
• 802.3u 100BASE-T

Reliability Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensingMechanical Dimension 86.5×53×23 mm
3.41×2.09×0.91 inches  Product Weight 106 g (3.74 oz. )  Casing Material Metal  Installation

• Desktop
• Wall-mount
