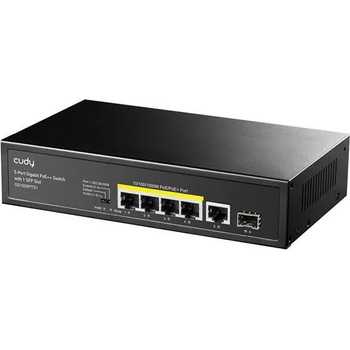

Cudy GS1005PTS1

Cudy GS1005PTS1



Specifications





Ethernet

4*10/100/1000M PoE Port

1*1000M RJ45 Port

1* Gigabit SFP Uplink Port

Switching Capacity
12Gbps

Throughput
8.928Mpps

Packet Buffer
1Mb

MAC Address
2K

Jumbo Frame
9216bytes

Transfer Mode
Store and forward

MTBF
100000 hour

Network protocol

IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX)

IEEE802.3ab(1000Base-TX)

IEEE802.3z(1000Base-FX)

IEEE802.3x (Flow control)

PoE Protocol

IEEE802.3af （15.4W）

IEEE802.3at （30W）

IEEE802.3at （4 Pair 60W）

Network Medium

10Base-T : Cat3、4、5 or above UTP(≤100m)

100Base-TX : Cat5 or above UTP(≤100m)

1000Base-TX : Cat5 or above UTP(≤100m)

Optical Media

Multimode fiber : 50/125, 62.5/125, 100/140μm

Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm

Working Environment

Working Temperature：-20~50°C

Storage Temperature：-40~85°C

Working Humidity ：10%~90%，non-cond ensing

Storage Temperature：5%~90%，non-cond ensing

Working Height：Maximum10,000 feet

Storage heigh：Maximum 10,000 feet

PWR（power supply）

Lighting：Powered

Un-Light：No Power

Mode（DIP）

Lighting：VLAN

Un-Light：Default

Flashing：Extend

1-6 Gree（Link&Data）

Lighting：Connecting

Flashing：Data Transmit

Un-Light：Disconnect

DIP Switch

VLAN：Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port.

Default: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters

Extend：Link extension mode, 3-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M

Product Dimension
200*118*44mm

Package Dimension
245*190*60mm

N. W
0.6kg

G. W
0.9kg

Packing Info

Carton MEAS：505*320*402mm

Packing Qty：20units

Packing Weight：19KG

Package List

Input Voltage ：AC 100-240 V



Package List
Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc,
