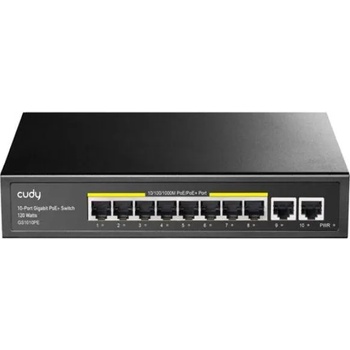

Cudy GS1010PE

Cudy GS1010PE

● Up to 120 watts total PoE budget

● Up to 30 watts PoE power one port

● 8 x 10/100/1000Mbps PoE+ ports

● 2 x 10/100/1000Mbps uplink ports

● Comply with IEEE802.3af/at standards

● IEEE 802.3x Flow control

120W Power budget & 30W Maximum One Port

Supports 120W total PoE power and up to 30W for one PoE port. Auto detect power device; will not burned non-standard PoE device or normal PoE switch. Complies with IEEE802.3af/at Standard

Rack Mount & Wall Mount & Desktop

●  Provide a variety of installation methods for easy deployment in any environment

●  Support Wall mount installation

●  Support Desktop installation

Plug&Play, Fanless design

Plug and Play, Easy of use. Fanless design for silent operation. Made of high-quality metal case, sturdy and durable with long service life, provide better heat dissipation, suitable for most environment. Pin assignment, Mode A: 1/2(+), 3/6(-)

Surveillance

Works with IP Cameras for home and office, small business

VoIP Conference Call

Works with VoIP phones for business conference

Wi-Fi Coverage

Works with WiFi APs for office and business



Specifications:

Model
GS1010PE

Network Protocol
IEEE802.3 / IEEE802.3u

IEEE802.3x / IEEE802.3af/at

PoE standard
IEEE802.3af/at

POE port output
DC 48-55V

PoE port
1-8

AC Input Voltage
AC100~240V

Power supply
120W

Power Pin
Power over spare pairs 1/2(+) , 3/6 (-)

PoE output-port
Max 30W

MAC Address
2K MAC address table

Packet buffer
2M bit

Transfer Mode
Store-and-forward

Bandwidth
20Gbps

Fan
Fanless

Device Dimension
222mm*163mm*40mm

Operating Temperature
-20°C ~ 50 °C

Storage Temperature
-40 °C ~ 80 °C

Operating Humidity
10% ~ 90% non-condensing

Storage Humidity
5% ~ 90% non-condensing
