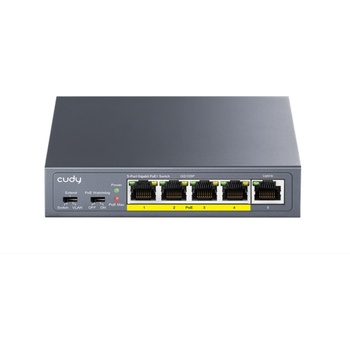

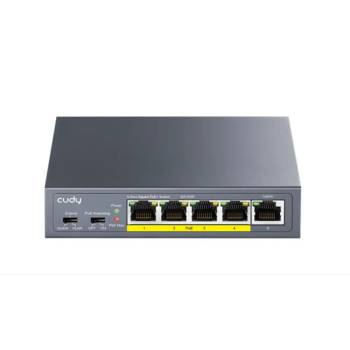

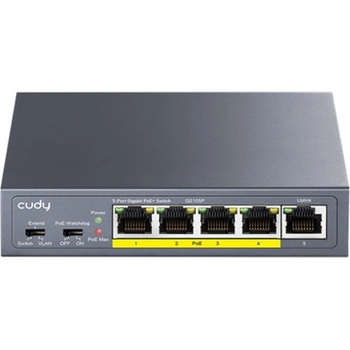

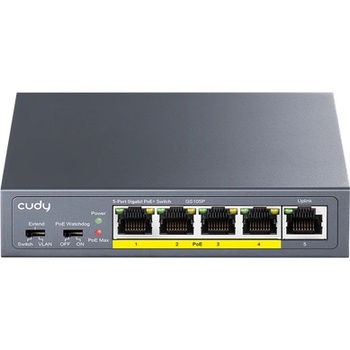

Cudy GS105P







Category Specification DetailsInterfaces Gigabit RJ45 Ports 5  Gigabit RJ45 PoE Ports #1~#4  Max Power on Single PoE Port 30W  PoE Port Notes Complies with IEEE 802.3at/af standards  Intelligent Power Management Automatically disconnects lastly powered device when power exceeds budget  Shielded RJ45 Port True  Extend Mode Ports #1~#4  VLAN Mode Ports #1~#4LED Indicators Power, PoE Status, Link/ACT, PoE Max StatusPower Input DC Jack —Physical Buttons DIP Switch VLAN/Default/Extend, PoE Watchdog On/OffWatchdog Note — Reboots inactive clients after 5 mins; avoid with auto-upgrade devicesPerformance Copper Speed & Distance Cat3: 100m@10Mbps, Cat5: 100m@100Mbps, Cat5e: 100m@1Gbps, Cat5e: 250m@10Mbps (Extend mode)  MAC Address Table 2048  Max Switching Capacity 10 Gbps  Max Forwarding Rate 7.44 Mpps  Jumbo Frame 15 KB  Packet Buffer 3 MbitPower Methods DC  DC 54V⎓0.66A  Power Supply 36W (Max excluding PoE: 4W)Switching 802.3 Protocols 802.3i/802.3u/802.3ab/802.3x/802.3af/802 . 3at  PoE Management Intelligent Power Management  L2 Features IGMP Snooping, Loop Prevention/DetectionReliability< /strong> Grounding Three-Prong Plug  EMS IEC/EN 61000-4-2 & 61000-4-5 (Surge & ESD ratings)  Environment Operating: 0–40°C; Storage: -40–70°C; Humidity 10–95%Mechanical Dimensions 119×85×28 mm (4.69×3.35×1.1 in)  Weight 253.6 g (8.95 oz)  Casing Metal  Installation Desktop, Wall-mountPackage Content Included GS105P, Power Adapter, Power Cord, Installation GuideOrdering Info Retail Package 165×123×60 mm, 580 g  Units per Carton 20  Carton Weight 11.1 kg net / 11.6 kg gross  Carton Dimensions 37.6×26.4×33.8 cm
