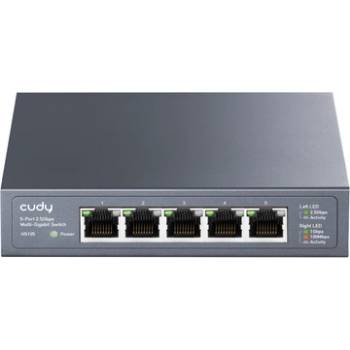

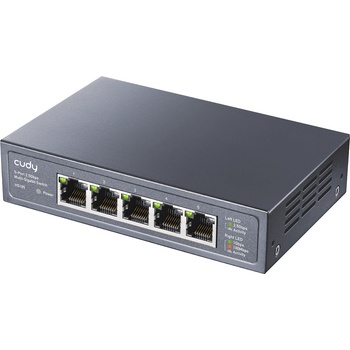

Cudy HS105

Cudy HS105

A 5-Port 2.5G switch with metal casing ideal for 2.5Gbps wired network expansion for NAS or bandwidth-intensive demands.

• 5× 2.5G Ethernet Ports
• IGMP Snooping, Loop Prevention
• Max 10.5W, Idle 4.7W
• 119×85×28 mm (4.69×3.35×1.1")
• Desktop, Wall-Mount
• Metal Casing





Protoc ols 802.3 Protocols

• 802.3x Flow Control
• 802.3u 100 Mbps over Twisted Pair
• 802.3ab 1 Gbps over Twisted Pair
• 802.3bz 2.5/5 Gbps over Twisted Pair

Advanced

• IGMP Snooping
• Loop Prevention
• Loop Detection

Memory/Storage Flash/ROM 1 MB (8 Mbit) NORInterfaces 2.5G RJ45 Ports 5  LED

• Power
• Speed/Link/ACT of Each Ethernet Port

  Power Input DC JackPerformance Copper Speed and Distance

• Cat. 5 or higher cable: 100 meters at 100 Mbps
• Cat. 5e or higher cable: 100 meters at Gigabit
• Cat. 5e cable: 50 meters at 2.5 Gbps
• Cat. 6 or higher cable: 100 meters at 2.5 Gbps

  MAC Address Table 8192  Max Switching Capacity 25 Gbps  Max Forwarding Rate 18.6 Mpps  Jumbo Frame 15 KB  Packet Buffer 4 MbitsPower Basic Power Saving True  Power Methods DC  DC 12V 1A  Max Power Consumption (W) 10.5W  Idle Power Consumption (W) 4.7WReliability Grounding Methods Grounding Point  Lightning/Surge Protection 2kV  ESD Contact Protection 4kV  ESD Air Protection 8kV  Environment Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
