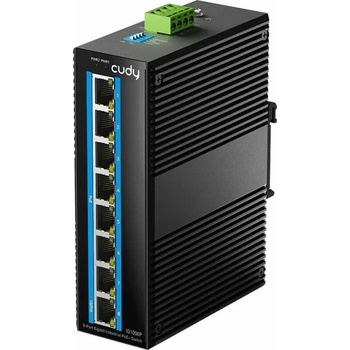

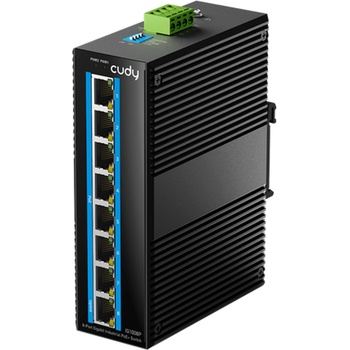

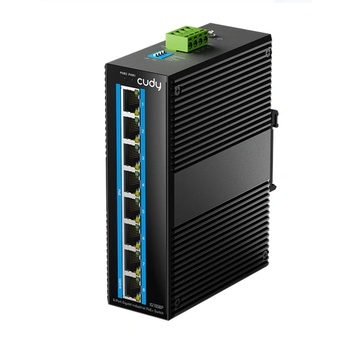

Cudy IG1008P

Cudy IG1008P

8-Port Gigabit Industrial PoE+ Switch

A 8-GbE industrial PoE switch for networking in harsh conditions such as manufacturing, transportation, maritime, oil & gas, and mining.

• 8× GbE, Shielded, ±6kV Surge Resistant
• 8× 802.3at/af Mode A PoE
• IP40, -40~75°C (-40~167°F)
• Dual-Power Redundancy, 44~57V Range
• Polarity Reverse Protection
• Short Circuit Protection
• Broadcast Storm Prevention On/Off
• Watchdog On/Off
• Extend On/Off, VLAN On/Off
• Integrated DIN-Rail Bracket



Model Version IG1008P 2.0Interfaces Gigabit RJ45 Ports 8  Gigabit RJ45 PoE Ports #1~#8  Max Power on a Single PoE Port 30W  PoE Port Notes The PoE ports comply with IEEE 802.3at/af standards.   Shielded RJ45 Port True  Extend Mode Ports #1~#4  VLAN Mode Ports #1~#7  LED

• Power 1
• Power 2
• Link/ACT of Each Ethernet Port
• PoE Status of Each PoE Port

  Power Input 4-Pin Terminal Block  Physical Buttons

• PoE Watchdog On/Off
• VLAN On/Off
• Extend On/Off
• Broadcast Storm Prevention On/Off

  Watchdog Note The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature. Performance Copper Speed and Distance

• Cat. 3 or higher cable: 100 meters at 10 Mbps
• Cat. 5 or higher cable: 100 meters at 100 Mbps
• Cat. 5e or higher cable: 100 meters at Gigabit
• Cat. 5e or higher cable: 250 meters at 10 Mbps

  Copper Speed and Distance Note 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.   MAC Address Table 4096  Max Switching Capacity 16 Gbps  Max Forwarding Rate 11.904 Mpps  Jumbo Frame 9 KB  Packet Buffer 1.5 MbitPower Power Methods DC  Power Redundancy Dual Inputs  DC 44-57V⎓  Max Power Consumption 240W  Max Power Excluding PoE 2.75W  Idle Power Consumption 2.2W  Polarity Reverse Protection True  Short Circuit Protection TrueSwitching 802.3 Protocols

• 802.3at PoE
• 802.3af PoE
• 802.3i 10BASE-T
• 802.3u 100BASE-TX
• 802.3ab 1000BASE-T
• 802.3x Flow Control

Reliability Grounding Methods Grounding Point  Safety IEC/EN 62368  EMC EN55032 Class A
EN55035 Class A  EMI FCC 47 CFR Part 15B Class A  EMS IEC/EN 61000-4-2, Level 4 ESD: Contact: 8kV; Air: 15kV
IEC/EN 61000-4-3, Level 4 RS: 80 MHz to 1 GHz: 30 V/m
IEC/EN 61000-4-4, Level 4 EFT: Power: 2kV; RJ45: 4kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 6kV
IEC/EN 61000-4-6, Level 3 CS: 10V
IEC/EN 61000-4-8, Level 5 PFMF
IEC/EN 61000-4-9, Level 5 PMF
IEC/EN 61000-4-10, Level 5 DOMF  EMS Note The levels listed in each EMS field are the highest level defined in the IEC/EN standard.   Shock IEC 60068-2-27  Vibration IEC 60068-2-6  Free Fall IEC 60068-2-32  Environment Operating Temperature: -40 ℃ ~ 75 ℃ (-40 ℉ ~167 ℉)
Storage Temperature: -40 ℃ ~ 85 ℃ (-40 ℉ ~ 185 ℉)
Operating Humidity: 5% ~ 95% non-condensing
Storage Humidity: 5% ~ 95% non-condensingMechanical Dimension 144×103×47.5 mm
5.67×4.06×1.87 inches  Product Weight 537.5 g (18.96 oz. )  Casing Material Aluminum  Ingress Protection IP40  Installation DIN-RailPackage Content

• IG1008P
• Installation Guide

Ordering Information Retail Package Dimension 207×154×75 mm
8.15×6.06×2.95 inches  Retail Package Weight 702.0 g (24.76 oz. )
