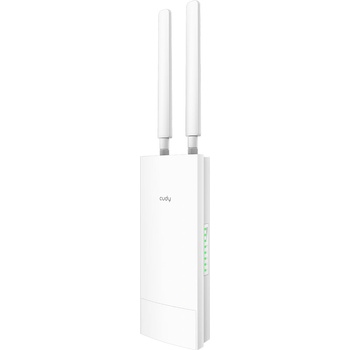

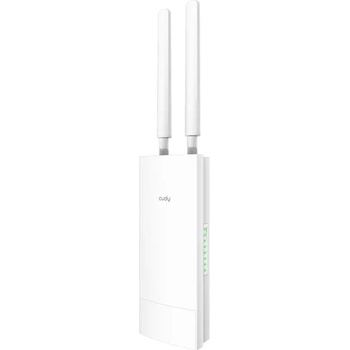

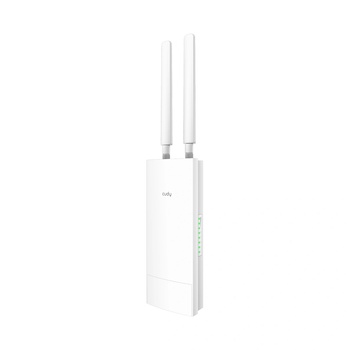

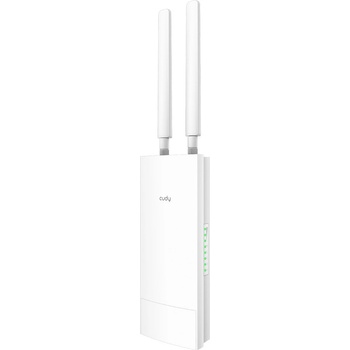

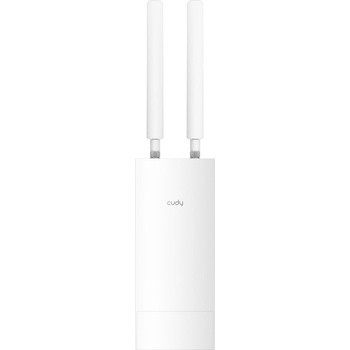

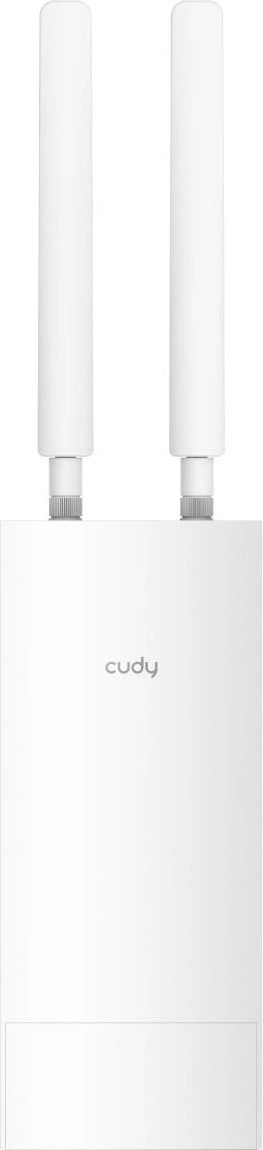

Cudy LT400 Outdoor

Cudy LT400 Outdoor





Turn Everywhere 4G into N300 Wi-Fi

With 4G Cat. 4 standards, LT400 Outdoor communicates with a 4G tower with speeds of up to 150 Mbps download and 50 Mbps upload. It features an N300 Wi-Fi, providing a reliable network for web browsing, video streaming, surveillance, and POS services.





Boosted Wi-Fi Coverage with Beamforming

Tested Wi-Fi coverage performance in four scenarios, achieved by Beamforming technology and two built-in antennas. If your space is too large for one Cudy 4G Outdoor Router to cover, you can expand your Wi-Fi coverage by adding another Cudy AP.





Outdoor Full-Bar 4G Signal Brings High-Quality Wi-Fi





A Reliable Network Solution

Gigabit Solution (Gigabit speed only in Intranet, suitable for NAS users):

• Switch: Cudy GS108 (Skip this if you don't require extra wired connections)
• AP: Cudy WR1300E/WR1300/WR3000 (Choose AP mode during setup)

Budget Solution:

• AP: Cudy WR1200 (Choose AP mode during Setup)





 < /p>

Specifications:

Model Version LT400 Outdoor 1.0CPU Chipset MT7628  CPU Details 580 MHZ Single-Core, MIPS24KECMemory/Storage Flash/ROM 8 MB (64 Mbit ) NOR  DDR/RAM 64 MB (512 Mbit) DDR2Cellular Cellular Standards 4G Cat. 4  Cellular Antennas 2× Fixed  Detachable Cellular Antennas Connector SMA Female  SIM Options 1× Nano SIM SlotEU Version Cellular Suitable Region Europe, Middle East, Africa  Max DL Speed 150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)  Max UL Speed 50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)  Advanced DL 2×2 MIMO  Cellular Bands LTE-FDD: B1/3/5/7/8/20/28
LTE-TDD: B38/40/41
WCDMA: B1/5/8US Version Cellular Suitable Region United States, Canada  Max DL Speed 150 Mbps  Max UL Speed 50 Mbps  Advanced DL 2×2 MIMO  Cellular Bands LTE-FDD: B2/4/5/12/13/14/66/71
WCDMA: B2/4/5Wireless 2.4 GHz Wi-Fi Speed 300 Mbps  2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)  Wi-Fi Antennas 2× Internal  Beamforming True  Range Performance Max: 170 m (558 ft)
Park: 150 m (492 ft)
Street: 30 m (98 ft)
Woods: 30 m (98 ft)Interfaces Physical Buttons Reset Button  10/100 Mbps RJ45 Ports 1  Ethernet Notes Accepts PoE powering  LED

• System
• Internet
• LAN
• Wi-Fi
• Cellular Signal Strength

  Power Input PoE via Ethernet PortPower Power Methods Passive PoE  Passive PoE 24V  Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 24V 0.5A DC  Max Power Consumption (W) 8W  Idle Power Consumption (W) 4WReliability Lightning/Surge Protection DM 2kV, CM 4kV  ESD Contact Protection 4kV  ESD Air Protection 8kV  Environment Operating Temperature: -20 ℃ ~ 60 ℃ (-4 ℉ ~140 ℉)
Extend Operating Temperature with Industrial Grade SIM Card: -40 ℃ ~ 65 ℃ (-40 ℉ ~ 149 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 0% ~ 100% non-condensing
Storage Humidity: 5% ~ 90% non-condensingCertifications FCC, CEMechanical Dimension Device Body:
240×100×53.7 mm
9.45×3.94×2.11 inches
Each Antenna:
197.5×21.6×15.5 mm
7.78×0.85×0.61 inches  Product Weight 420 g (14.82 oz. )  Installation

• Wall-mount
• Pole-mount
