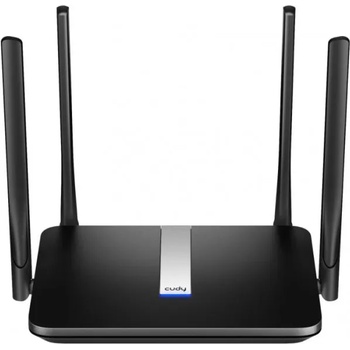

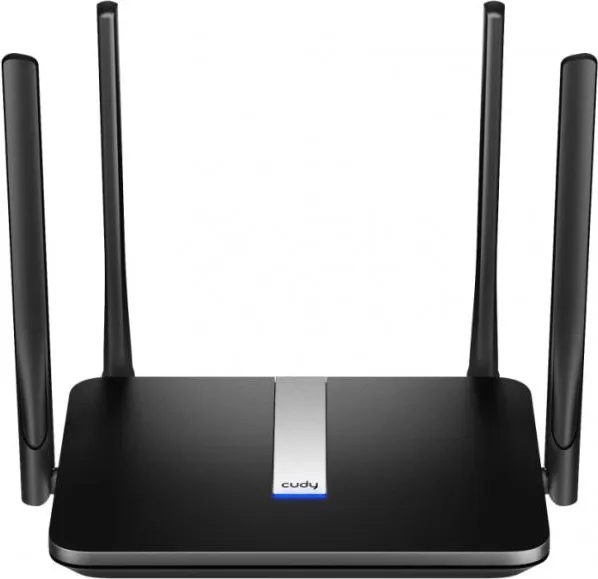

Cudy LT500

Cudy LT500

● Up to 150 / 50Mbps LTE speed

● AC1200 Wi-Fi for a smoother experience

● High gain antennas expand coverage

● PPTP/L2TP/OpenVPN/WireGuard/IPsec/Zeroti er VPN

● Flexible WAN/LAN port for dual connectivity

● Compatible with 15+ DDNS providers

● DNS over Cloudflare/NextDNS/Google

FDD + TDD

Support FDD and TDD, meet the needs of various ISPs and provide a good user experience for customers. Support most cellular operators around the world.

VPN

The VPN client runs a secure and private tunnel from Cudy to the remote offices and teleworkers over the Internet. Supports: PPTP/L2TP/OpenVPN/WireGuard/IPsec/Zeroti er

15+DDNS

Compatible with more than 15 DDNS providers that allow you to manage your router remotely easily. You can access the Cudy administration page with a common name in the URL even though the IP address changes.

High Gain Antennas

High-gain antennas increase the sensitivity of the router and establish connections over longer distances. Provide strong penetration into walls.

Office Network

If you are working in LAN mode, LT500 is just a normal 4G LTE router. While working in WAN mode, the LT500 can maintain 4G and WAN connections at the same time and preferably provide the Internet via wired ports. The 4G network is just a backup.

Home Network

LT500 uses the latest generation of 4G LTE technology to achieve speeds of up to 150Mbps when downloading and 50 Mbps when uploading. You can also connect to games, streaming, and more using Wi-Fi at a maximum speed of 867Mbps on 5GHz and 300Mbps to 2.4GHz.

Vacation Network

Insert the SIM card (switch on) and enjoy the Internet! It is very easy to use when you are on vacation. Take it to your holiday home and enjoy surfing online.



Specifications:

Model
4G LTE AC1200 Dual Band Wi-Fi Router

DRAM/FLASH
128MB DDR2 / 16M SPI Flash

Interface
3 x RJ45 10M/100M  LAN Ethernet interfaces

1 x RJ45 10M/100M WAN Ethernet interfaces

1 x Reset Button

1 x WPS Button

1 x SIM Slot (Nano)

Antenna
2 * WiFi Antennas and 2 * LTE Antennas

Gain
5dBi

Wi-Fi Frequency
2.4GHZ, 5GHz

LTE Frequency Bands

EU Version
LTE-FDD: B1/B3/B5/B7/B8/B20/B28

LTE-TDD: B38/B40/B41

WCDMA: B1/B5/B8

GSM/EDGE: B3/B8

LTE Frequency Bands

US Version
LTE-FDD: B2/B4/B5/B12/B13/B14/B66/ B71

WCDMA: B2/B4/B5

Wireless Features
Wireless Standards
IEEE 802.11ac/a/n/b/g

Frequency
2.4GHz and 5GHz

Signal Rate
867Mbps (5GHz), 300 Mbps (2.4GHz)

Compatible with 802.11ac/a/b/g/n Wi-Fi standards

Transmit Power
CE:
