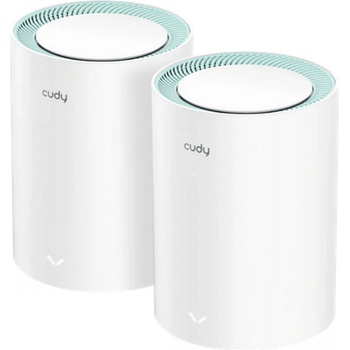

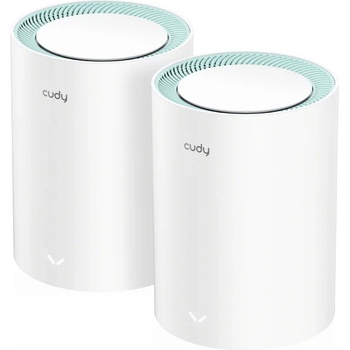

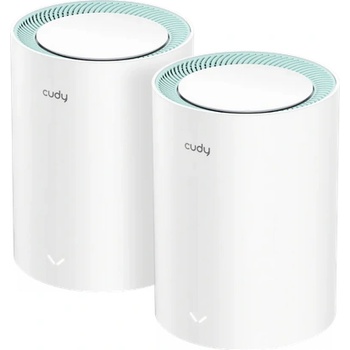

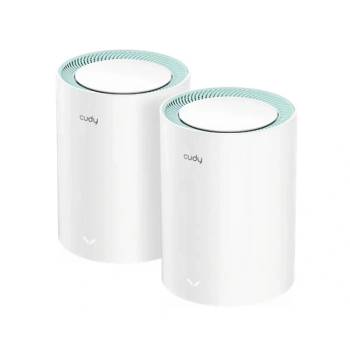

Cudy M1500 (2-Pack)

Always Connected to the Best Signal

Move freely throughout your home. Cudy seamless roaming auto-switches your device to the strongest Wi-Fi signal in milliseconds – ensuring buffer-free streaming, smooth calls, and lagless gaming everywhere.



Wired Power Meets Whole-Home Performance

Experience low-latency gameplay, smooth 4K streaming, and reliable data transfers. With up to 1000 Mbps per port, M1500 delivers the consistent, wired performance your most demanding devices deserve - no drops, no delays.



Parental Controls

Set Wi-Fi time schedules and block inappropriate websites to protect your loved ones. You can create custom profiles to easily manage multiple devices.





Hardware Specs

CPU CPU Details 1 GHz Single-Core CPUMemory/Storage Flash/ROM 16 MB (128 Mbit) NOR  DDR/RAM 128 MB (1 Gbit) DDR3Wireless 5 GHz Wi-Fi Speed 1201 Mbps  2.4 GHz Wi-Fi Speed 300 Mbps  5 GHz Wi-Fi Streams 2T2R (2×2 MIMO)  2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)  Wi-Fi Antennas 2x Internal  5 GHz Antenna Gain Max 5.56 dBi  2.4 GHz Antenna Gain Max 4.41 dBi  FEM or PA/LNA

• 5 GHz: 2x Internal
• 2.4 GHz: 2x Internal

  Beamforming True  Range Performance Max: 170 m (558 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.   Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')  Indoor Coverage Reference 2 Pack: 170 m2 (1800 sq ft)
3 Pack: 230 m2 (2500 sq ft)
Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of two obstacles to each room. Interfaces Gigabit RJ45 Ports 3  Ethernet Notes 1× WAN port, the rest are LAN ports  LED System  Physical Buttons

• WPS Button
• Reset Button

  Power Input DC JackPower Power Methods DC  DC Input 12V 1A  Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC  Max Power Consumption (W) 10WReliability Environment

• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing

Certifications FCC, CEMechanical Installation Desktop  Dimension Φ110×154.5 mm
Φ4.33×6.08 inches



Software Specs

Wireless Wi-Fi Standards Wi-Fi 6  Max Wi-Fi Modulation 1024-QAM  Wi-Fi Efficiency Beamforming  Max Capacity 128  Recommended Client Upper Limit 60  Max Wi-Fi Channel Width 80 MHz  Wi-Fi Security WPA/WPA2/WPA3  Guest Network 2.4 GHz, 5 GHz  WPS TrueGeneral Operation Modes

• Wi-Fi Router
• Access Point
• Range Extender
• WISP
• Client

  Mesh Cudy Mesh  Mesh Backhaul

• Wireless Backhaul
• Wired Backhaul

  Multi-Band Backhaul True  WAN Mode

• DHCP
• Static IP
• PPPOE
• PPTP
• L2 TP

Network QoS Per-User Rate Limiting  DHCP

• Address Reservation
• DHCP Client List
• Server

  IP Versions IPv4/IPv6  IPv6 Protocols

• Relay
• Dynamic (SLAAC/DHCPv6)
• Static (Fixed IP)
• Passthrough
• 464XLAT< /li>
• MAP-E
• DS-Lite
