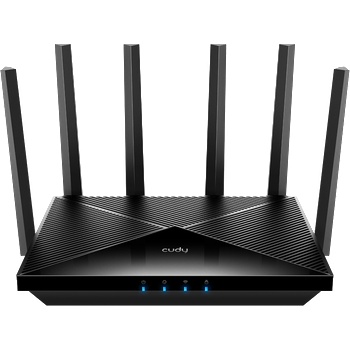

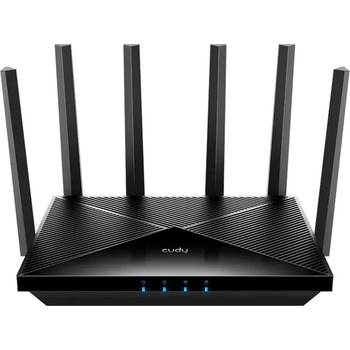

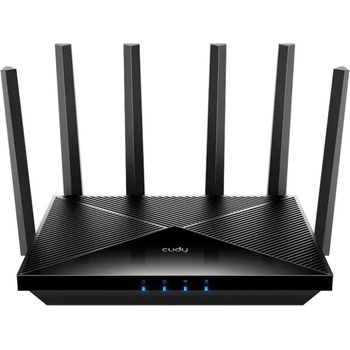

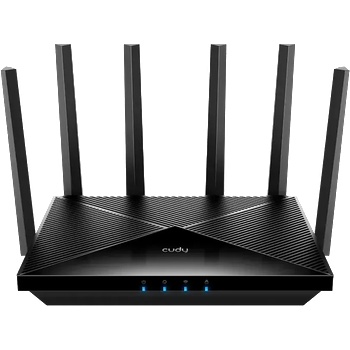

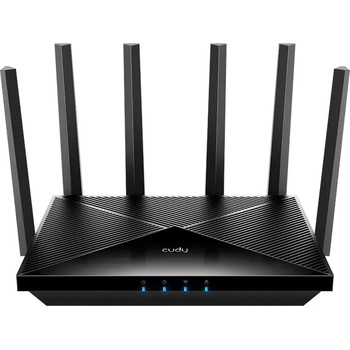

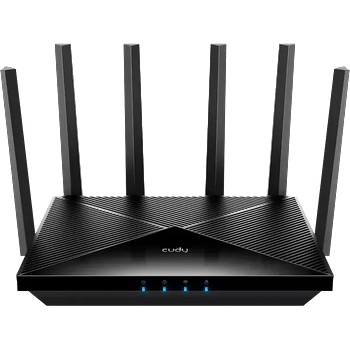

Cudy WR11000

Model Version
WR11000 1.0

CPU
1.5 GHz Quad-Core CPU, ARM Cortex-A53

Flash/ROM
128 MB (1 Gbit) NAND

DDR/RAM
512 MB (4 Gbit) DDR4

6 GHz Wi-Fi Speed
5765 Mbps

5 GHz Wi-Fi Speed
4324 Mbps

2.4 GHz Wi-Fi Speed
688 Mbps

6 GHz Wi-Fi Streams
2T2R (2×2 MIMO)

5 GHz Wi-Fi Streams
2T2R (2×2 MIMO)

2.4 GHz Wi-Fi Streams
2T2R (2×2 MIMO)

Wi-Fi Antennas
6× Fixed

6 GHz Antenna Gain Max
4.5dBi

5 GHz Antenna Gain Max
4.5dBi

2.4 GHz Antenna Gain Max
5dBi

FEM or PA/LNA
6 GHz: 2× High-Power5 GHz: 2× High-Power2.4 GHz: 2× Standard

Beamforming
True

Range Performance
Max: 240 m (787 ft)

Wall Performance
Two wooden walls < 10 cmOne concrete wall < 20 cm or two concrete walls < 10 cm

2.5G RJ45 Ports
4

Ethernet Notes
1× WAN port, the rest are LAN ports

LED
System, Internet, Wi-Fi, WPS

Physical Buttons
Power On/Off, WPS, Reset

Power Input
DC Jack

Power
DC 12V 2AAdapter Input: 100 ~ 240 V, 50/60 Hz ACAdapter Output: 12V 2A DC

Max Power Consumption
22W

Idle Power Consumption
12W

Operating Temperature
0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)

Storage Temperature
-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)

Humidity
10% ~ 90% non-condensingStorage: 5% ~ 95% non-condensing

Certifications
FCC, CE

Installation
Desktop, Wall-mount

Dimension
253×152.5×48.2 mm (9.96×6×1.9 in)

Product Weight
643.4 g (22.7 oz. )

Package Content
WR11000, Power Adapter, Ethernet Cable, Installation Guide

Retail Package Weight
EU: 1236.3 g (43.61 oz. )

Retail Package Dimension
431×324×58 mm (16.97×12.76×2.28 in)

Units per Carton
8

Carton Dimension
49.2×44.5×34.4 cm (19.37×17.52×13.54 in)

Carton Gross Weight
EU: 10.9 kg (24.03 lbs)

Carton Net Weight
EU: 9.9 kg (21.83 lbs)
