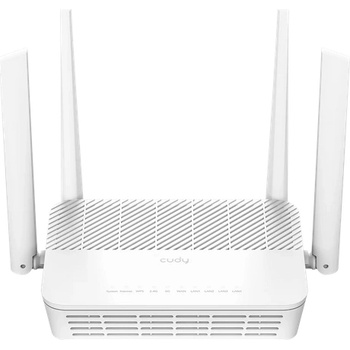

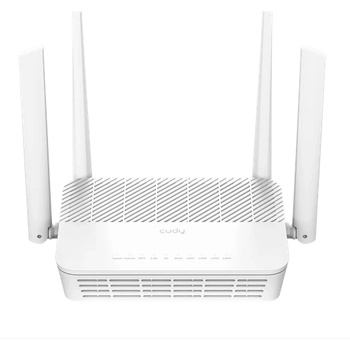

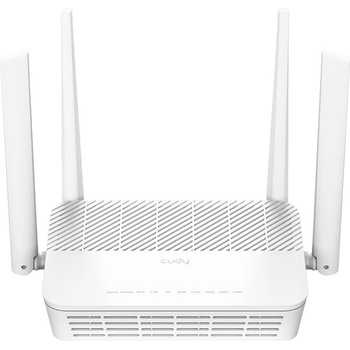

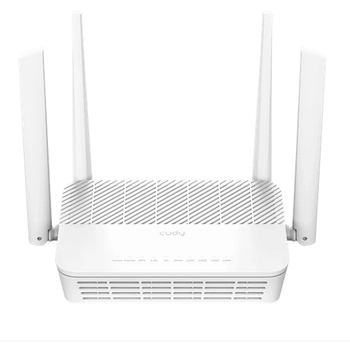

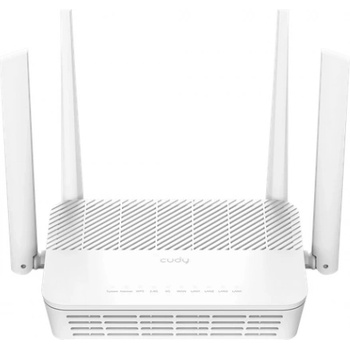

Cudy WR3000P

A PoE-powered WiFi 6 router with 2.5 Gbps internet connectivity, ideal for connecting a large number of devices and reducing latency. It features a USB ports, enabling fire sharing or third-party device powering.





Hardware Specs

CPU CPU Details 1.3 GHz Dual-Core, ARM Cortex-A53Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND  DDR/RAM 512 MB (4 Gbit) DDR4Wireless 5 GHz Wi-Fi Speed 2402 Mbps  2.4 GHz Wi-Fi Speed 574 Mbps  5 GHz Wi-Fi Streams 2T2R (2×2 MIMO) with an Extra Stream  2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)  Wi-Fi Antennas 4× Fixed  5 GHz Antenna Gain Max 5.3dBi  2.4 GHz Antenna Gain Max 5.3dBi  FEM or PA/LNA

• 5 GHz: 3× Internal
• 2.4 GHz: 2× Internal

  Beamforming True  Range Performance Max: 220 m (722 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.   Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')Interfaces 2.5G RJ45 Ports 1  Gigabit RJ45 Ports 4  Ethernet Notes The 2.5G port is WAN port and accepts PoE powering, the Gigabit ports are LAN ports  USB-A 2.0 Ports 1  LED

• System
• Internet
• 2.4 GHz Wi-Fi
• 5 GHz Wi-Fi
• WAN
• LAN
• US B

  Physical Buttons

• Power On/Off Button
• WPS Button
• Reset Button

  Power Input

• DC Jack
• PoE via Ethernet Port

Power Power Methods

• DC
• 802.3at/af PoE

  DC Input 12V 1.5A  Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1.5A DC  Max Power Consumption (W) 11.5w  Idle Power Consumption (W) 4.2wReliability Environment

• Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
• Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing

Certifications FCC, CEMechanical Installation

• Desktop
• Wall-mount
< /ul>  Dimension 173×123.8×33 mm
6.81×4.87×1.3 inches



Software Specs

Wireless Wi-Fi Standards Wi-Fi 6  Max Wi-Fi Modulation 1024-QAM  Wi-Fi Efficiency
• OFDMA
• MU-MIMO
• BS S Color
  Max Capacity 512  Recommended Client Upper Limit 200  Max Wi-Fi Channel Width 160 MHz  Wi-Fi Security WPA/WPA2/WPA3  Guest Network 2.4 GHz, 5 GHz  WPS TrueGeneral Operation Modes
• Wi-Fi Router
• Access Point
• Range Extender
• WISP
• Client
  Mesh Cudy Mesh  Mesh Backhaul
• Wireless Backhaul
• Wired Backhaul
  Multi-Band Backhaul True  WAN Mode
• DHCP
• Static IP
• PPPOE
• PPTP
• L2 TP
Network QoS Per-User Rate Limiting  DHCP
• Address Reservation
• DHCP Client List
• Server
  IP Versions IPv4/IPv6  IPv6 Protocols
• Relay
• Dynamic (SLAAC/DHCPv6)
• Static (Fixed IP)
• Passthrough
• 464XLAT< /li>
• MAP-E
• DS-Lite
