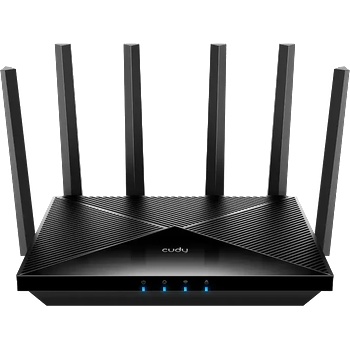

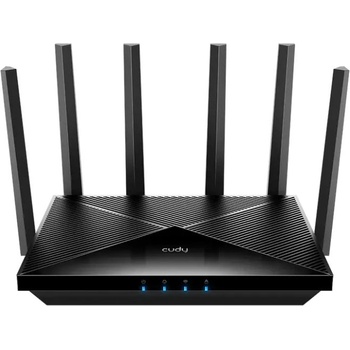

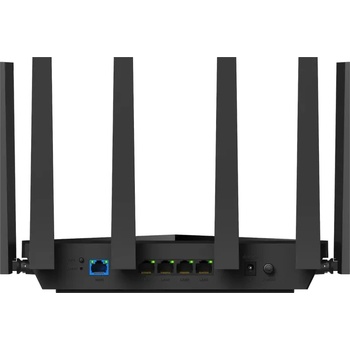

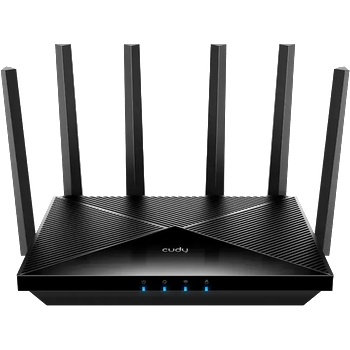

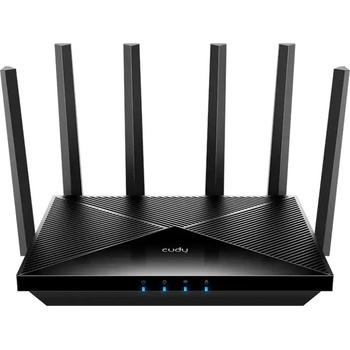

Cudy WR6500H

Model Version
WR6500H 1.0

CPU
2.0 GHz Quad-core, ARM Cortex-A7

Flash/ROM
128 MB (1 Gbit) NAND

DDR/RAM
512 MB (4 Gbit) DDR4

5 GHz Wi-Fi Speed
5765 Mbps

2.4 GHz Wi-Fi Speed
688 Mbps

5 GHz Wi-Fi Streams
4T4R (4×4 MIMO)

2.4 GHz Wi-Fi Streams
2T2R (2×2 MIMO)

Wi-Fi Antennas
6× Fixed

5 GHz Antenna Gain Max
5.27dBi

2.4 GHz Antenna Gain Max
5.19dBi

FEM or PA/LNA
5 GHz: 4× External2.4 GHz: 2× Internal

Beamforming
True

Range Performance
Max: 240 m (787 ft)

Wall Performance
2 wooden walls < 10 cm or 1 concrete wall < 20 cm

2.5G RJ45 Ports
1 (WAN)

Gigabit RJ45 Ports
4 (LAN)

LED Indicators
System, Internet, Wi-Fi, WPS

Physical Buttons
Power On/Off, WPS, Reset

Power Input
DC Jack

Power
DC 12V 1.5AAdapter Input: 100~240V ACAdapter Output: 12V 1.5A DC

Max Power Consumption
17W

Operating Temperature
0℃ ~ 40℃ (32℉ ~ 104℉)

Storage Temperature
-40℃ ~ 70℃ (-40℉ ~ 158℉)

Humidity
Operating: 10% ~ 90%Storage: 5% ~ 95%

Certifications
FCC, CE

Installation
Desktop, Wall-mount

Dimensions
253×152.5×48.2 mm (9.96×6×1.9 in)

Product Weight
580.4 g (20.47 oz)

Package Contents
WR6500H, Power Adapter, Ethernet Cable, Installation Guide

Retail Package Weight
EU: 1184.0 g (41.76 oz)

Retail Package Dimension
431×324×58 mm (16.97×12.76×2.28 in)

Units per Carton
8

Carton Dimension
49.2×44.5×34.4 cm (19.37×17.52×13.54 in)

Carton Gross Weight
EU: 10.4 kg (22.93 lbs)

Carton Net Weight
EU: 9.5 kg (20.94 lbs)

Гаранция: 24 месеца
