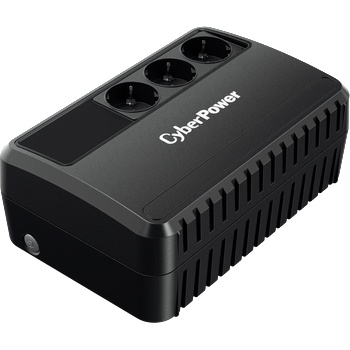

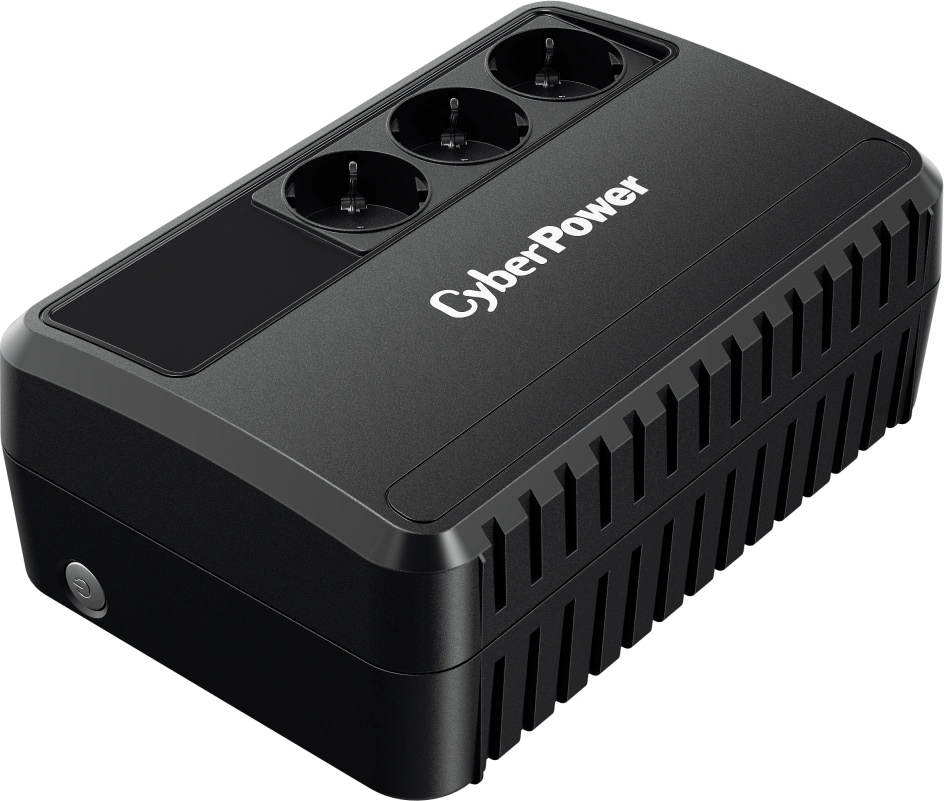

CyberPower BU650EG 650VA

CyberPower BU650EG provides home and office users with a reliable battery backup and safeguards office PCs and other electronic devices from surges, spikes, brownouts and other power irregularities. The product adopts line-interactive topology with Automatic Voltage Regulation (AVR) function to offer stabilized AC power output. The patented GreenPower UPS Bypass design helps UPS achieve ultra-low power consumption to reduce energy costs while lowering UPS operating temperature, which extends its battery lifespan. Configurable alarm allows users to switch the audible alarm on or off during battery mode to avoid unnecessary disturbances. Its desktop design allows users to place it easily on desks or other tight spaces.

Features

• Line-interactive UPS Topology
• Automatic Voltage Regulation (AVR)
• LED Status Indicator
• Surge and Spike Protection
• EMI and RFI Filtration
• Energy Saving Technology
• Generator Compatible
• Overload Protection
• Wall Mount Installation
• Configurable Alarm



Category SpecificationGe neral  Phase Single PhaseForm Factor DesktopUPS Topology Line-interactiveEnergy Saving Technology GreenPower UPS Bypass TechnologyInput  Generator Compatibility YesNominal Input Voltage (Vac) 230 ± 10%Input Voltage Range (Vac) 167 ~ 295Input Frequency (Hz) 50 ± 5 / 60 ± 5Input Frequency Detection Auto-sensingRated Input Current (A) 2.83Input Connector Type SchukoPower Cord Length (ft. ) 4Power Cord Length (m. ) 1.2Output  Capacity (VA) 650Capacity (Watts) 360On Battery Waveform Simulated Sine WaveOn Battery Voltage (Vac) 230 ± 10%On Battery Frequency (Hz) 50 ± 1% / 60 ± 1%AVR Single Boost, Single BuckOverload Protection Internal Current LimitingOutlet(s) - Total 3Outlet Type Schuko x 3Battery & Surge Protected 3Typical Transfer Time (ms) 4Battery  Runtime at 60W (min) 30Runtime at 90W (min) 18Runtime at 200W (min) 5Typical Recharge Time (hrs) 8Start On Battery YesUser-replaceable NoBattery Type Sealed Lead-acidSurge Protection & Filtering  Surge Suppression (Joules) 150EMI/RFI Filtration YesManagement & Communications  LED Indicators Power On, Line Mode, Battery Mode, Low BatteryAudible Alarms Battery Mode, Low Battery, Overload, UPS FaultPhysical  Wall Mount Installation YesEnclosure Construction PlasticColor BlackDimensions (WxHxD) (in. ) 6.33 x 3.6 x 9.45Dimensions (WxHxD) (mm. ) 158 x 91.5 x 240Weight (lbs. ) 8.38Weight (kg. ) 3.8Shipping Dimensions (in. ) 4.6 x 8.9 x 11.1Shipping Dimensions (mm. ) 118 x 225 x 281Shipping Weight (lbs. ) 8.66Shipping Weight (kg. ) 3.93Environmental  Operating Temp (°F) 32 ~ 104Operating Temp (°C) 0 ~ 40Operating Humidity (%) 0 ~ 90 (non-condensing)Operating Elevation 0–9,843 ft (0–3,000 m)Storage Temp (°F) -4 ~ 122Storage Temp (°C) -20 ~ 50Storage Humidity (%) 0 ~ 90 (non-condensing)Storage Elevation 0–9,843 ft (0–3,000 m)Thermal Dissipation (BTU/hr) 44.3Audible Noise (dBA) 40 @ 1.5 m
