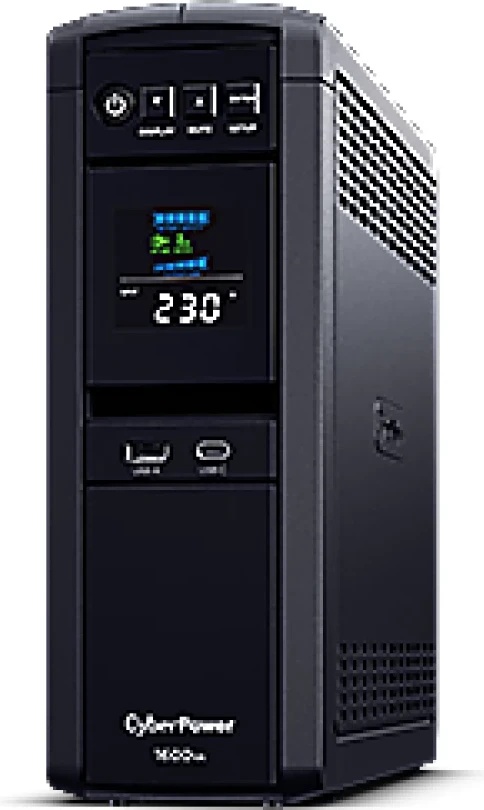

CyberPower CP1600EPFCLCD 1600VA

CyberPower CP1600EPFCLCD with Pure Sine Wave output safeguards mid- to high-end computer systems, servers and networking hardware that use conventional and Active Power Factor Correction (PFC) power supplies. Designed with GreenPower UPS Technology to improve UPS operating efficiency and to minimize its energy consumption, this UPS delivers significant energy cost savings over conventional UPS systems. The UPS provides Automatic Voltage Regulation (AVR) to maintain stable voltage for connected equipment. The product features data line protection with high-speed transmission to safeguard communication equipment against surges/spikes as well as supply 1Gbps speed to transmit data. With tiltable color LCD panel , users can monitor key power and battery information at a glance. The PowerPanel Power Management Software allows user to perform real-time monitoring and configuration.

General
Form Factor
Tower
UPS Topology
Line-interactive
Energy Saving Technology
GreenPower UPS Bypass Technology
Active PFC Compatibility
Yes
Input
Nominal Input Voltage ( Vac )
220
230
240
Input Voltage Range ( Vac )
169 ~ 271
Input Frequency ( Hz )
50 ± 3
60 ± 3
Input Frequency Detection
Auto-sensing
Rated Input Current ( A )
10
Input Connector Type
IEC C14     　
Detachable Power Cord Plug Type
Schuko x     　
Power Cord Length (ft. )
6
Power Cord Length (m. )
1.83
Output
Capacity (VA)
1600
Capacity (Watts)
1000
On Battery Waveform
Pure Sine Wave
On Battery Voltage(s) ( Vac )
230 ± 5 % (Under a test load of＜60%. When the load＞60%, the output voltage range may＞5%. )
On Battery Frequency ( Hz )
50 ± 1%
60 ± 1%
Automatic Voltage Regulation (AVR)
Single Boost
Overload Protection
Internal Current Limiting
Outlet(s) - Total
6
Outlet Type
Schuko x 6     　
Outlet(s) - Battery & Surge Protected
6
Typical Transfer Time ( ms )
8 (At normal sensitivity)
USB Charging Port(s)
USB-A x 1
USB-C x 1
USB Charging Total Output ( Watts )
30
USB-A Charging Output
5 V/ 2.4 A Max
USB-C Charging Output
5 V/ 2.5 A Max
9 V/ 2 A Max
15 V/ 2 A Max
Battery
Runtime at Half Load ( min )
9.7
Runtime at Full Load ( min )
2.6
Typical Recharge Time ( Hours )
8 (Recover to 90% after full load discharge)
User-replaceable
Yes
Battery Type
Sealed Lead-acid
Replacement Battery Pack (RBP)
RBP0142
Replacement Battery Pack (RBP) Quantity ( pcs )
1
Surge Protection & Filtering
Surge Suppression ( Joules )
405
Network Protection RJ45
1-in, 1-out
Management & Communications
LCD Panel
Yes
LCD Types
Color LCD
Tiltable LCD Panel
22°
LCD Information Display
Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Event & Log
LCD Setting & Control
Alarm Setting, Input & Output, Battery Setting, Event & Log
LED Indicators
Power On
HID Compliant USB Port(s)
1
Serial Port
Dry Contact
Audible Alarms
Battery Mode, Low Battery, Overload, UPS Fault
Management Cable ( pcs )
USB Cable x1
Ethernet Data Transmission Speed
Up to 1Gbps
Power Management Software
PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring
Yes - with optional RMCARD205
Physical Size - UPS Module
Dimensions (WxHxD) (mm. )
100 x 280 x 355
Weight (lbs. )
24.25
Weight (kg. )
11
