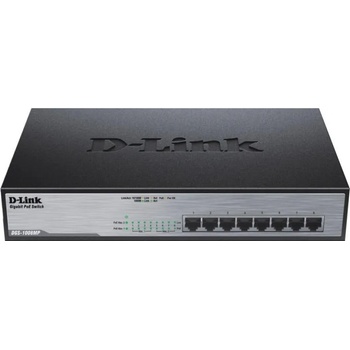

D-Link DGS-1008MP

D-Link DGS-1008MP

8-Port Desktop Gigabit Max PoE Switch

Something of a powerhouse when it comes to Power-over-Ethernet switches, this compact beauty offers PoE to 802.3af/at standard across all eight Gigabit Ethernet ports, at up to 30 Watts per port with a power budget total of 140 Watts. Which, put simply, means you can power devices such as access points, IP phones and video surveillance cameras simply by plugging them in with an Ethernet cable – no additional power required.

PoE

The DGS-1008MP features 8 x 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ protocol. Each of the 8 PoE+ ports can supply up to 30 watts with a total PoE power budget of 140 watts. PoE is especially suitable for devices that are far from power outlets or when you want to minimise the clutter of extra cables.

Superior Performance

No configuration is required and installation is quick and easy. Support for Auto MDI/MDI-X on all ports eliminates the need for crossover cables when connecting to another switch. Auto- Negotiation on each port senses the link speed of a network device (10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. The switch has been designed without fans ensuring silent operation wherever it is installed. With wire-speed filtering and store-and-forward switching, the DGS-1008MP maximises network performance while minimising the transmission of bad network packets.

Technical Specifications

General

Size

11-inch Desktop/Rackmount size, 1U height

Number of Ports

8 10/100/1000 Mbps Ports

Port Standards & Functions

IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3at Power over Ethernet
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.3x Flow Control supports half/full duplex mode
ANSI/IEEE 802.3 NWay auto-negotiation

Switching Capacity

16 Gbps switching fabric

Media Interface Exchange

Auto MDI/MDI-X

Transmission Method

Store-and-forward

MAC Address Table

8K entries per device

Packet Buffer Memory

128 KB per device

Packet Filtering / Forwarding Rates

Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Gigabit Ethernet: 1,488, 000 pps per port

Data Transfer Rates

Ethernet
10 Mbps (half duplex)
20 Mbps (full duplex)
Fast Ethernet
100 Mbps (half duplex)
200 Mbps (full duplex)
Gigabit Ethernet
2000 Mbps (full duplex)

Network Cables

10BASE-T:
UTP CAT 3/4/5/5e (100 m max. )
EIA/TIA-586 100-ohm STP (100 max. )
100BASE-TX
UTP CAT 5/5e (100 m max. )
EIA/TIA-568 100-ohm STP (100 max. )
1000BASE-T
UTP CAT 5/5e(100 m max. )
EIA/TIA-568 100-ohm STP(100 max. )

Physical

LED Indicators

Per port: Activity / Link and Speed
Per port: Power / Status
PoE Max 1: Ports 1-4
PoE Max 2: Ports 5-8

Dimensions

280 mm x 180 mm x 44 mm (11.02 x 7.08 x 1.73 inches)

Power Input

AC Input: 100 to 240 V AC, 50/60 Hz

Maximum PoE Budget

140 watts

Power Consumption

13.5 watts (PoE off)
151 watts (PoE on)
PoE up to 30 watts per port

Temperature

Operating: 0 to 40 ˚C (32 to 104 ˚F)
Storage: -10 to 70 ˚C (14 to 158 ˚F)

Humidity

Operating: 0% to 95% RH non-condensing
Storage: 5% to 95% RH non-condensing

EMI

CE Class A
FCC Class A
VCCI Class A
CCC Class A
BSMI Class A

Safety

cUL
CB
LVD
CCC
BSMI
