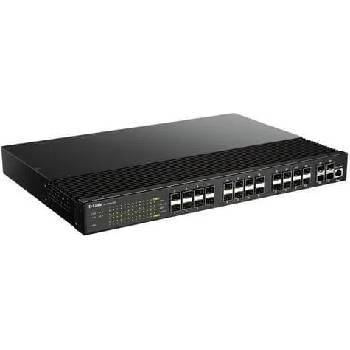

D-Link DIS-700G-28XS

D-Link 24 Ports SFP Plus 4 Port 10G SFP+ with Single AC input
Суич, тип: Fixed Port
Общ брой портове: 28
Основни портове, тип: 24xSFP
Power Over Ethernet (PoE): No
Uplink портове: 4x10GE SFP
Свободни (10GB) слотове: No
Управление: Industrial-like CLI (command line interface); WEB-based Management; SNMP v1, v2c, v3; Telnet (5 sessions); TFTP/FTP for Configuration Import/Export and Firmware Upgrade; HTTPs, SSH Management Security; NTP/SNTP; Syslog, Policy-based stream mirroring
Stackable: No
Fans: Fanless design
Захранване: AC Inputs: 100/240 VAC, 50Hz ~ 60Hz; Power Consumption: 35W
Routing: Layer 2 Only
MAC адреси: 8000 MAC address table size
VLAN (брой, стандарти): IEEE 802.1Q tag-based VLANs, Port-based VLANs, IEEE 802.1v protocol-based VLANs, IEEE 802.1ad Double Tagging (Q in Q), Private VLAN, 2048 Max VLANs, MVR (Multicast VLAN Registration), Attach/Remove/Replacement VLAN tag Operations
QoS: 8 queues per port; Scheduling Schemes - SPQ, WRR, SPQ + WRR; Ingress rate limit in 1K bps granularity TrTCM (Two Rate Three Color Marker) policer engine; Traffic Shaper - Hierarchical per port and per queue shaping & scheduling with bandwidth management
L2 мрежови стандарти: IEEE 802.3, IEEE 802.3u, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1X, IEEE 802.1ad
Сигурност: Port Security - IP and MAC-based Access control, Policy-based Access control, IEEE 802.1X authentication, Network Access Control, RADIUS Client for IEEE 802.1X; Storm Control - Multicast/Broadcast/Flooding Storm Control on per port and per VLAN basis
Размери (Ш, Д, В), mm: 440 x 319 x 44
Опция за монтаж: Rackmount
Гаранция: 60 месеца
