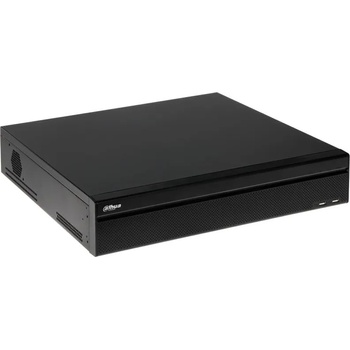

Dahua 16-channel NVR NVR5816-4KS2

System:

Main Processor- Quad-core embedded processor

Operating System- Embedded LINUX

Display:

Interface- 2 HDMI (1 HDMI up to 3840x2160, Different Source ), 1 VGA

Resolution- 3840x2160, 1920×1080, 1280×1024, 1280×720, 1024×768

Multi-screen Display:
1st screen: 16CH: 1/4/8/9/16
32CH: 1/4/8/9/16/25/36
64CH: 1/4/8/9/16/25/36
2nd screen: 1/4/8/9/16

OSD- Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Video Detection and Alarm:

Trigger Events- Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips

Video Detection- Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering

Alarm input- 16 Channel, Low Level Effective, Green Terminal Interface

Relay Output- 6 Channel, NO/NC Programmable, Green Terminal Interface

Tracking Trigger Event- N/A

Playback and Backup:

Sync Playback- 1/4/9/16

Search Mode- Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function:
Play, Pause, Stop, Rewind, Fast play, Slow Play,
Next File, Previous File, Next Camera, Previous
Camera, Full Screen, Repeat, Shuffle, Backup
Selection, Digital Zoom

Backup Mode- USB Device/Network/Internal SATA burner/eSATA Device

Storage:
Internal HDD- 8 SATA III Ports, up to 6TB capacity for each HDD

HDD Mode- Single, Raid 0/1/5/6/10

eSATA- 1 eSATA port

SAS- N/A

Auxiliary Interface:
Front Cover- N/A

USB- 4 ports (2 Rear USB3.0, 2 Front USB2.0)

RS232- 1 Port, for PC Communication and Keyboard

RS485- 1 Port, for PTZ Control

Third-party Support:
Dahua, Arecont Vision, AXIS, Bosch, Brickcom,
Canon, CP Plus, Dynacolor, Honeywell, Panasonic,
Pelco, Samsung, Sanyo, Sony, Videotec, and more

Audio and Video:
IP Camera Input- 16/32/64 Channel

Two-way Talk- 1 Channel Input, 1 Channel Output, RCA

Recording:

Compression- H. 265/H. 264/MJPEG/MPEG4

Resolution- 12Mp/8Mp/6Mp/5Mp/4Mp/3Mp/1080P/ 720P/ D1&etc

Record Rate- 320Mbps

Bit Rate- 16kbps~20Mbps for per channel

Record Mode- Manual, Schedule(Regular(Continuous), MD, Alarm), Stop

Record Interval- 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec

Network:

Interface- 2 RJ-45 ports (10/100/1000Mbps)

Ethernet Port- 2 Ethernet Ports Joint Working or 2 Independent 1000Mbps Ethernet Ports

PoE- N/A

Network Function:
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP,
NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm
Server, IP Search(Support Dahua IP camera, DVR,
NVS and etc. ), P2P

Optical Fiber Interface- N/A

Max. User Access- 128 users

Smart Phone- iPhone, iPad, Android

Interoperability- ONVIF 2.4, CGI Conformant

Electrical:

Power Supply- Single, AC 100~240V, 50/60 Hz

Power Consumption-
