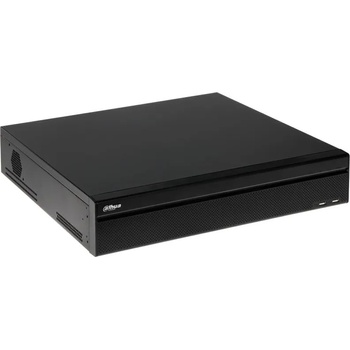

Dahua 32-channel NVR NVR608-32-4KS2

Dahua NVR608-32-4KS2

32 Channel Ultra 4K H. 265 Network Video Recorder
Intel Processor
Max 32 IP Camera Inputs
Max 384Mbps Incoming Bandwidth
Up to 12MP Resolution for Preview and Playback
Supports RAID 0/1/5/6/10
Smart Tracking and Intelligent Video

System
Main Processor
Intel Dual-core Processor

Operating System
Embedded LINUX

Audio and Video
IP Camera Input
32 Channel

Two-way Talk
1 Channel Input, 1 Channel Output, RCA

Display
Interface
2 HDMI (up to 3840 x 2160 , Different Source),
1 VGA

Resolution
3840 × 2160 , 1920 × 1080 , 1280 × 1024,
1280 × 720 , 1024 × 768

Multi-screen Display
1st Screen: 1/4/8/9/16/25/36
2nd Screen: 1/4/8/9/16

OSD
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording

Compression
H. 265/H. 264/MJPEG

Resolution
12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P etc.

Record Rate
384Mbps

Bit Rate
16Kbps ~ 20Mbps Per Channel

Record Mode
Manual, Schedule (Regular, MD (Motion Detection), Alarm, IVS), Holiday, Stop

Record Interval
1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection
Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering

Alarm input
16 Channel, Low Level Effective, Green Terminal Interface

Relay Output
8 Channel, NO/NC Programmable, Green Terminal Interface

Tracking Trigger Event
Zoom, Tracking, Recording, Preset, Snapshot, Alarm, etc.

Playback and Backup
Playback
128 Mbps in Raid 5 Mode;
64 Mbps in single HDD Mode

Search Mode
Time /Date, Alarm, MD and Exact Search (accurate to second)

Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode
USB Device/Network/eSATA Device

Third-party Support
Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more

Network
Interface
2 RJ-45 Ports (10/100/1000Mbps)

Ethernet Port
2 Ethernet Ports Joint Working or 2 Independent 1000Mbps Ethernet Ports

PoE
N/A

Network Function
HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc. )

Optical Fiber Interface
N/A

Max. User Access
128 users

Smart Phone
iPhone, iPad, Android

Interoperability
ONVIF 2.4, CGI Conformant

Storage
Internal HDD
8 SATA III Ports, Up to 8 TB capacity for each HDD

HDD Mode
Single, Raid 0/1/5/6/10(Enterprise-level HDDs are recommended),  Support Global HDD Hot-spare

eSATA
1 eSATA Port (Please contact technical engineer to confirm the compatible device)

SAS
N/A

Auxiliary Interface
Front Cover
N/A

USB
4 USB Ports (2 USB 2.0 , 2 USB 3.0 )

RS232
1 Port, for PC Communication and Keyboard

RS485
1 Port, for PTZ Control

Electrical
Power Supply
AC100V ~ 240V, 50 ~ 60 Hz

Power Consumption
