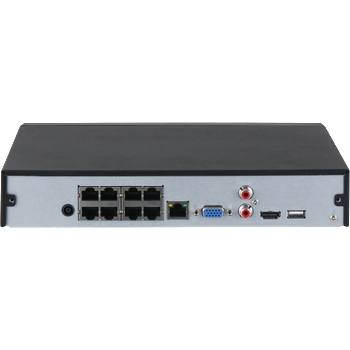

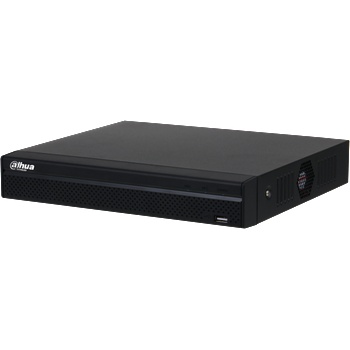

Dahua 8-channel NVR NVR4108HS-8P-4KS3

DAHUA NVR4108HS-8P-4KS3



Standard: TCP/IPSupported resolutions: max. 12 Mpx - 4000 x 3000 pxVideo outputs: 1 pcs HDMI 4K
1 pcs VGAAudio support:

• 8 Channels - Audio from cameras
• Bi-directional audio streaming support

Audio inputs: 1 pcs CINCHAudio outputs: 1 pcs CINCHImage compression method: Smart H. 265+ / H. 265 / Smart H. 264+ / H. 264Bitrate: max. 160 Mbps (without AI)
max. 80 Mbps (AI)Supported hard drives: 1  x 20 TB SATARecording modes: Manual, Motion Detection, ScheduleExternal storage devices backup: Backup to USB drive (pendrive, external drive)Searching and playback the records:

• Records searching: by time and events type. Records playback: forward, backward, fast, slow
• Advanced searching (to the one second accuracy)
• Smart Playback function
• Records playback from max. 8 channels in the same time

Network interface: 1 x RJ-45 10/100/1000 Base-TXNetwork functions: Full support via network, Remote records copying, Web-Server built-inNetwork protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Register, IP SearchONVIF: 22.12 Default IP address: 192.168. 1.108 Default admin user / password: admin / admin
The administrator password should be set at the first startMobile phones support:

Port no. : 37777 or access by a cloud (P2P)

• Android: Free application DMSS
• iOS (iPhone): Free application DMSS

  See how to configure the P2P function in Dahua recorders and how to enable the mobile application

Web browser access ports: 80, 37777 PC client access ports: 37777 Mobile client access ports: 37777 RTSP URL:

• rtsp://admin:hasł[email protected]. 1.108:554/cam/realmonitor?channel=1&subt ype=0 - Main stream
• rtsp://admin:hasł[email protected] 68. 1.108:554/cam/realmonitor?channel=1&subt ype=1 - Sub stream

USB: 2 pcs USB 2.0Serial ports: NoAlarm inputs / outputs: NoPTZ control: IP Speed Dome CamerasMotion Detection: YesIntelligent image analysis: YesMain features:

• SMD PLUS - searching for an object classified as: human, motor vehicle
• Filtering of false alarms based on the recognition of persons and vehicles
• Privacy zones

  Functions implemented in cooperation between the recorder and cameras that support these functions :


• Intelligent image analysis : perimeter protection, scene changing
• face detection - supports 6 types of facial attributes extraction
• Face recognition
• people counting
• heat map

Mouse support: YesIR remote controller in the set: NoSwitch PoE: 8-port PoE Switch built-in, 25.5 W / Channel - PoE (802.3af/at)Maximum total switch load: 72 WPower supply: 53 V DC / 1.81 A (power adapter included)Power consumption: max. 10 W (without HDD)Operation temp: -10 °C ... 55 °CWeight: 0.91 kgDimensions: 260  x 233  x 48 mm
