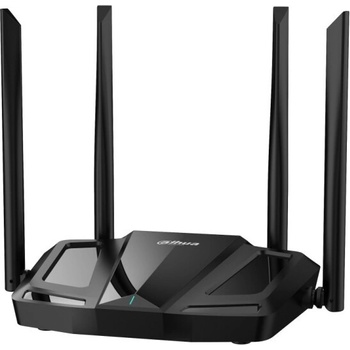

Dahua AC12 AC1200

AC1200 Wireless Router

> 1.2 Gbps Wireless Speed(300 [email protected] GHz, 867 Mbps@5 GHz).

> Backward compatible (IEEE 802.11 b/g/n/ac standard).

> Beamforming for better Coverage.

> Bi-directional MU-MIMO.

> WiFi protected Access(WPA/WPA2).

> Guest Wi-Fi.

> Parental Control.

Specifications:< /strong>

Hardware

Function Slots


1×10/100/1000 Mbps WAN Port
3×10/100/1000Mbps LAN Port

External Port


No

Button


1 × eSync Button
1 × Reset Button

Power Supply


12 VDC，1 A

Memory


DDR 64 MB

Indicator Light


1 × SYS

Performance

Wireless Standard


2.4 GHz: IEEE 802.11b/g/n
5 GHz: IEEE 802.11a/n/ac

Wireless Transmission Rate


2.4 GHz: 300 Mbps
5 GHz: 867 Mbps

Operating Frequency


2.4 GHz: 2.400 GHz–2.484 GHz
5 GHz: 5.150 GHz–5.850 GHz

Channel Width


2.4 GHz: 20/40 MHz
5 GHz: 20/40/80 MHz

Max. Output Power


CE EIRP:
≤20 [email protected] MHz
≤23 dBm@5150-5250 MHz
≤20 dBm@5250-5350 MHz
≤27 dBm@5470-5725 MHz
≤14 dBm@5725-5850 MHz

Transmission Distance


15 m (49.21 ft)

Optimal Transmission Distance


7 m (22.97 ft)

Connected Wireless Terminals


2.4 GHz: 32
5 GHz: 32

Function

Equipment Management


Web; App

Network Protocol


HTTP;HTTPS;TCP/IP;IPv 4;UDP;NTP;DHCP;DNS;IPv6;ICMP;ARP;TCP;WMM ;802.11b;802.11g;802.11n;MAC Filter;802.11ac;802.11a

Network Access


PPPoE; Dynamic IP; Static IP

Operating Mode


Wireless Router Mode
Wireless Relay Mode (Client+AP)

Encryption Mode


WPA; WPA2; WPA3; WPA/WPA2; WPA2/WPA3

Security Mechanism


MAC filtering; HTTPS

OFDMA


Yes

MU-MIMO


Yes

DHCP


Yes

NAT


Port mapping

VPN


No

QoS


No

DDNS


No

MESH


No

Firmware Update


Web update;App update

Software


Device Management: Quick Setup Wizard; System Management; System Log; Factory Reset; Backup Config; Config Restore; DMZ; Port Mapping; Diagnosis&Restart; Smart Control of LED
RF Management: Wireless mode settings; Wireless bandwidth settings; Wireless channel settings; Transmission power settings; SSID Broadcast
Network Type: Guest Wi-Fi; Host Wi-Fi; Dual-band 2.4/5G; Wireless timing
End Device Management: WLAN MAC address filtering; Parental Control; End Device Name Config

General

Power Consumption


Full load: 10.5 W
Idling: 2.1 W

Operating Temperature


0 °C to +40 °C (+32 °F to +104 °F)

Storage Temperature


–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity


10%–90% (RH), non-condensing

Net Weight


0.26 kg (0.57 lb)

Gross Weight


0.7 kg (1.54 lb)

Product Dimensions


220 mm × 144 mm × 179 mm (8.66" × 5.67" × 7.05") (L × W × H)

Packaging Dimensions


292 mm × 259 mm × 70 mm (11.50" × 10.20" × 2.76") (L × W × H)

Statics Protection


Air discharge: 8 kV
Contact discharge: 4 kV

Lightning Protection


Common mode: 2 kV
Differential mode: 1 kV

Installation


Desktop mount; wall mount
