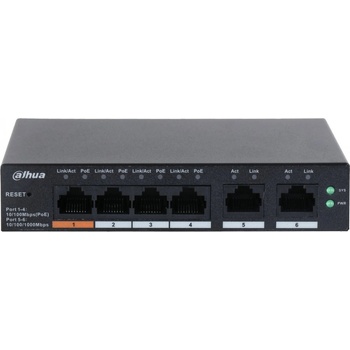

Dahua CS4006-4ET-60

CS4006-4ET-60

6-Port Cloud Managed Desktop Switch with 4-Port PoE

> Meets the requirements of IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab standards.
> Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE power supply standards.
> Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE.
> A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.





Specifications:

HardwareIncluded Power Adapter  YesPoE YesEthernet Port 4Ethernet Port Speed 10/100 MbpsEthernet Port Uplink Speed 10/100/1000 MbpsDescription of Function Slots Port 1-4: 4 × RJ-45 10/100 Mbps (PoE); Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)Reset Button 1Power Supply External power supply: 53 VDC, 1.226 AOperating Temperature –10 °C to +55 °C (+14 °F to +131 °F)Operating Humidity 5%–95% (RH), non-condensingStorage Temperature –40 °C to +70 °C (–40 °F to +158 °F)Storage Humidity 5%–95% (RH), non-condensingPower Consumption Idling: ≤3 W Full load: 65 WPerformanceLayer Layer 2Management Type YesSmart Managed Switch YesMTBF 232.62 yearsSwitching Capacity 4.8 GbpsPacket Forwarding Rate 3.57 MppsPacket Buffer Size 4 MbitJumbo Frame 9216 ByteMAC Table Size 8KVLAN Number 32Communication Standard IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3abFeaturePoE Protocol IEEE802.3af; IEEE802.3at; Hi-PoEPoE Power Port 1 ≤ 60 W, Port 2-4 ≤ 30 W, total ≤ 60 WPoE Power Consumption Management YesPoE Pin Assignment 1,2, 4,5（V+）, 3,6, 7,8（V-）Long Distance PoE Transmission YesVLAN Function Port-based VLANIEEE 802.3x Flow Control YesDHCP Function DHCP ClientEquipment Management Web management; App managementGeneralStatic s Protection Air discharge: 8 kV; Contact discharge: 6 kVLighting Protection Common mode: 4 kV; Differential mode: 2 kVNet Weight 0.28 kg (0.64 lb)Gross Weight 0.92 kg (2.02 lb)Product Dimensions 130 mm × 90 mm × 26 mm (5.11" × 3.54" × 1.02") (L × W × H)Packaging Dimensions 265 mm × 238 mm × 76 mm (10.43" × 9.37" × 2.99") (L × W × H)
