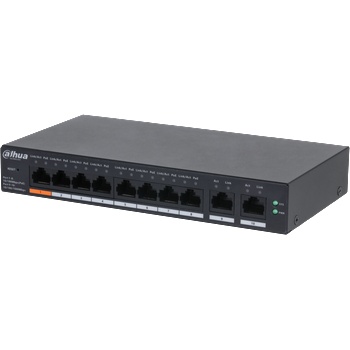

Dahua CS4010-8ET-60
Basic Layer Layer 2 Switching Capacity 4.8 Gbps Packet Forwarding Rate 3.57 Mpps Description of Function Slots Port 1-8: 8 × RJ-45 10/100 Mbps (PoE); Port 9-10:...
84,67 €|165,60 лв.*
(9,46 €) Доставка 18,50 лв.,Информация в магазина
Вид:
Най-евтини оферти (1)
Dahua CS4010-8ET-60
9,46 € (18,50 лв.)
CS4010-8ET-60 10-портов облачно управляван десктопен суич с 8 порта PoE (CS4010-8ET-60)
CS4010-8ET-60 10-портов облачно управляван десктопен суич с 8 порта PoE (CS4010-8ET-60)
Описание на продукта
Basic Layer Layer 2 Switching Capacity 4.8 Gbps Packet Forwarding Rate 3.57 Mpps Description of Function Slots Port 1-8: 8 × RJ-45 10/100 Mbps (PoE); Port 9-10:...
Параметри на продукта
Производител
DAHUA
Управляем
Да
Параметри на продукта
Производител
DAHUA
Управляем
Да
Описание на продукта
Basic
Layer
Layer 2
Switching Capacity
4.8 Gbps
Packet Forwarding Rate
3.57 Mpps
Description of Function Slots
Port 1-8: 8 × RJ-45 10/100 Mbps (PoE); Port 9-10: 2 × RJ-45 10/100/1000 Mbps (uplink)
PoE Power
Port 1 ≤ 60 W, Port 2-8 ≤ 30 W, total ≤ 60 W
Operating Temperature
-10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity
5% -95% (RH), non-condensing
Power Consumption
Idling: ≤3 W
Full load: 65 W
Power Supply
External power supply: 53 VDC, 1.226 A
Statics Protection
Air discharge: 8 kV
Contact discharge: 6 kV
Lightning Protection
Common mode: 4 kV
Differential mode: 2 kV
Net Weight
0.28 kg (0.64 lb)
Product Dimensions
130 mm × 90 mm × 26 mm (5.11" × 3.54" × 1.02") (L × W × H)
Hardware
PoE
Yes
Reset Button
1
Storage Temperature
-40 °C to +70 °C (-40 °F to +158 °F)
Storage Humidity
5%-95% (RH), non-condensing
Performance
MTBF
232.62 years
Packet Buffer Size
4 Mbit
Jumbo Frame
9216 Byte
MAC Table Size
8K
VLAN Number
32
Communication Standard
IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab
Feature
PoE Protocol
IEEE802.3af; IEEE802.3at; Hi-PoE
PoE Power Consumption Management
Yes
PoE Pin Assignment
1,2, 4,5（V+）, 3,6, 7,8（V-）
Long Distance PoE Transmission
Yes
VLAN Function
Port-based VLAN
IEEE 802.3x Flow Control
Yes
DHCP Function
DHCP Client
Equipment Management
Web management; App management
General
Gross Weight
0.80 kg (1.76 lb)
Packaging Dimensions
265 mm × 238 mm × 76 mm (10.43" × 9.37" × 2.99") (L × W × H)
Casing Material
Sheet metal
Installation
Desktop mount
Wall mount
Certifications
CE
Packing List
Quick Start Guide × 1
Legal and Regulatory Information × 1
Power adapter × 1
Power cord × 1
Гаранция: 36 месеца
Layer
Layer 2
Switching Capacity
4.8 Gbps
Packet Forwarding Rate
3.57 Mpps
Description of Function Slots
Port 1-8: 8 × RJ-45 10/100 Mbps (PoE); Port 9-10: 2 × RJ-45 10/100/1000 Mbps (uplink)
PoE Power
Port 1 ≤ 60 W, Port 2-8 ≤ 30 W, total ≤ 60 W
Operating Temperature
-10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity
5% -95% (RH), non-condensing
Power Consumption
Idling: ≤3 W
Full load: 65 W
Power Supply
External power supply: 53 VDC, 1.226 A
Statics Protection
Air discharge: 8 kV
Contact discharge: 6 kV
Lightning Protection
Common mode: 4 kV
Differential mode: 2 kV
Net Weight
0.28 kg (0.64 lb)
Product Dimensions
130 mm × 90 mm × 26 mm (5.11" × 3.54" × 1.02") (L × W × H)
Hardware
PoE
Yes
Reset Button
1
Storage Temperature
-40 °C to +70 °C (-40 °F to +158 °F)
Storage Humidity
5%-95% (RH), non-condensing
Performance
MTBF
232.62 years
Packet Buffer Size
4 Mbit
Jumbo Frame
9216 Byte
MAC Table Size
8K
VLAN Number
32
Communication Standard
IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab
Feature
PoE Protocol
IEEE802.3af; IEEE802.3at; Hi-PoE
PoE Power Consumption Management
Yes
PoE Pin Assignment
1,2, 4,5（V+）, 3,6, 7,8（V-）
Long Distance PoE Transmission
Yes
VLAN Function
Port-based VLAN
IEEE 802.3x Flow Control
Yes
DHCP Function
DHCP Client
Equipment Management
Web management; App management
General
Gross Weight
0.80 kg (1.76 lb)
Packaging Dimensions
265 mm × 238 mm × 76 mm (10.43" × 9.37" × 2.99") (L × W × H)
Casing Material
Sheet metal
Installation
Desktop mount
Wall mount
Certifications
CE
Packing List
Quick Start Guide × 1
Legal and Regulatory Information × 1
Power adapter × 1
Power cord × 1
Гаранция: 36 месеца
