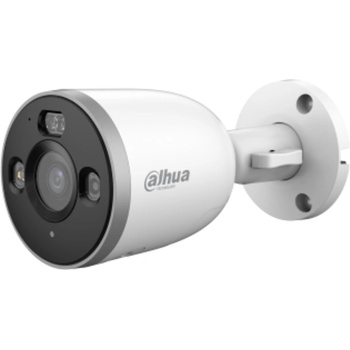

Dahua F3D-PV-0280B

Dahua F3D-PV-0280B

Standard: IPResolution: 2304 x 1296  - 3 MpxSensor: 1/2.8 " CMOSLens: 2.8 mmView angle: 103 °Range of IR illumination: 30 mWhite light LED illuminator range: 30 mMemory card slot: Micro SD card support up to 256GBImage compression method: H. 265 / H. 264
/ H. 264B / H. 264HAlarm inputs / outputs:Audio:

• Microphone built-in,
• Speaker built-in,
• Bi-directional audio streaming support

Main stream frame rate: 25 fps @ 4 MpxNetwork interface:

• Wi-Fi - IEEE 802.11 b/g/n/ax, 2.4 GHz,
• 10/100 Base-T (RJ-45)

WEB Server: Built-inONVIF:Mobile phones support:

Port no. : 37777 or access by a cloud (P2P)

• Android: DMSS free application
• iOS (iPhone): DMSS free application

Default IP address: 192.168. 1.108 Default admin user / password: admin / -
The administrator password should be set at the first startWeb browser access ports: 80, 37777 PC client access ports: 37777 Mobile client access ports: 37777 ONVIF port: 80 RTSP URL: rtsp://admin:hasł[email protected]. 1.108:554/cam/realmonitor?channel=1&subt ype=0 - Main stream
rtsp://admin:hasł[email protected]. 1.108:554/cam/realmonitor?channel=1&subt ype=1 - Sub streamMain features:

• Fast pairing with Bluetooth
• Active deterrence function
• D-WDR - Wide Dynamic Range
• Possibility to change the resolution, quality and bit rate
• Image rotation and mirror
• Motion Detection - max. 4 configurable zones - Human detection, vehicle detection
• Privacy zones - max. 4

Power supply: 12 V DC / 610 mAPower consumption: ≤ 7.3 W @ 12 V DCHousing: Bullet - Plastic
+ MetalColor: White + Black"Index of Protection": IP67Vandal-proof:Operation temp: -40 °C ... 60 °CWeight: 0.34 kgDimensions: 158  x 77  x 77 mm
