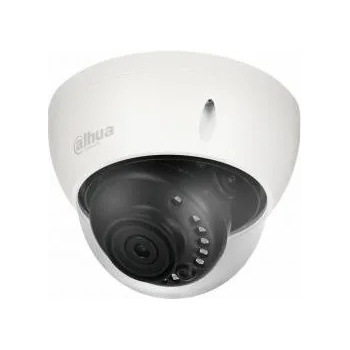

Dahua HAC-HDBW1230E

· Starlight
· Max. 30fps@1080P
· HD and SD output switchable
· 3.6mm fixed lens (2.8mm optional)
· Max. IR length 30m, Smart IR
· IP67, IK10, DC12V

Technical Specification

Camera
Image Sensor: 1/2.8" CMOS
Effective Pixels: 1920(H)×1280(V), 2MP
Scanning System: Progressive
Electronic Shutter: Speed PAL: 1/25~1/100000s, NTSC: 1/30~1/100000s
Minimum Illumination: 0.005Lux/F1.6, 30IRE, 0Lux IR on
S/N Ratio: More than 65dB
IR Distance: Up to 30m (98feet)
IR On/Off: Control Auto / Manual
IR LEDs: 12

Lens
Lens Type: Fixed lens / Fixed iris
Mount Type: Board-in
Focal Length: 3.6mm (2.8mm Optional)
Max Aperture: F1.6
Angle of View: H: 86.9° (106.0°)
Focus Control: N/A
Close Focus Distance: 1200mm (600mm) 47.2'' (23.6'')

Pan / Tilt / Rotation
Pan: 0° ~ 355°
Tilt: 0° ~ 65°
Rotation: 0° ~ 355°

Video
Resolution: 1080P (1920×1080)
Frame Rate: 25/30fps@1080P, 25/30/50/60fps@720P
Video Output: 1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night: Auto (ICR) / Manual
OSD Menu: Multi-language
BLC Mode: BLC / HLC / DWDR
WDR: DWDR
Gain Control: AGC
Noise Reduction: 2D
White Balance: Auto / Manual
Smart IR: Auto / Manual

Certifications
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No. 60950-1)

Interface
Audio Interface: N/A

Electrical
Power Supply: 12V DC ±30%
Power Consumption: Max 3.1W (12V DC, IR on)

Environmental
Operating Conditions: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
* Start up should be done at above -40°C (-40°F)
Storage Conditions: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal: Resistance IP67 & IK10

Construction
Casing: Aluminium
Dimensions: Φ109.9mm×81.0mm (Φ4.33"×3.19")
Net Weight: 0.21kg (0.46lb)
Gross Weight: 0.31kg (0.68lb)
