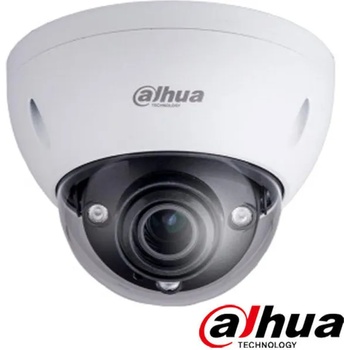

Dahua HAC-HDBW3802E-ZH

Technical Specification

Camera

Image Sensor 1/1.8" CMOS
Effective Pixels 3840(H)×2160(V), 8MP
Scanning System Progressive
Electronic Shutter Speed 1/1s~1/100,00s
Minimum Illumination 0.005Lux/F1.5(Color), 30IRE, 0Lux/F1.5(B/W)
S/N Ratio More than 65dB
IR Distance Up to 50m (164feet)
IR On/Off Control Auto / Manual
IR LEDs 3

Lens

Lens Type Motorized lens / Auto iris
Mount Type Board-in
Focal Length 3.7-11mm
Max Aperture F1.5
Angle of View H: 112°~46°
Focus Control Auto / Manual
Close Focus Distance 200mm(7.87")

DORI Distance

Note: The DORI distance is a general proximity of distance which makes it easy to
pinpoint the right camera for your needs. The DORI distance is calculated based on
sensor specification and lab test result according to EN 62676-4 which defines the
criteria for Detect, Observe, Recognize and Identify respectively.
DORI
Definition
Distance
Wide Tele
Detect 25px/m (8px/ft) 83m(273ft) 190m(624ft)
Observe 63px/m (19px/ft) 33m(109ft) 76m(250ft)
Recognize 125px/m (38px/ft) 17m(54ft) 38m(125ft)
Identify 250ppm (76px/ft) 8m(27ft) 19m(62ft)

Pan / Tilt / Rotation

Pan/Tilt/Rotation
Pan: 0° ~ 355°
Tilt: 0° ~ 85°
Rotation: 0° ~ 355°

Video

Resolution 8MP (3840×2160)
Frame Rate PAL:3840×[email protected], 2560x1440@25fps;
NTSC:3840×2160@15fps, 2560x1440@30fps;
Video Output 1-channel HDCVI 4K video output & 1-channel CVBS
video output
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / WDR
WDR 120dB
Gain Control AGC
Noise Reduction 2D/3D
White Balance Auto / Manual
Smart IR Auto / Manual

Certifications

Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No. 60950-1)

Interface

Audio Interface 1-channel audio in
Alarm I/O 2/1

Eelectrical

Power Supply 12V DC ±25%/24V AC ±25%
Power Output DC 12V/Max 4W
Power Consumption Max 12.4W

Environmental

Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
* Start up should be done at above -40°C (-40°F)
Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection & Vandal
Resistance IP67 & IK10

Construction

Casing Aluminium
Dimensions Φ159.1mm×117.9mm (Φ6.26"×4.64")
Net Weight 0.90kg (1.98lb)
Gross Weight 1.20kg (2.65lb)
