Dahua HAC-HDW1400R-VF
Dahua HAC-HDW1400R-VF 4MP HDCVI IR Eyeball Camera > Max 30fps@4MP > HD and SD output switchable > 2.7-13.5mm vari-focal lens > Max. IR length 30m, Smart IR > IP67, DC12V...
96,63 €|188,99 лв.*
В наличност
Вид:
Най-евтини оферти (1)
Dahua HAC-HDW1400R-VF
Куполна камера Dahua 4.1 Megapixel 1080P, Day&Night, HDCVI, HAC-HDW1400R-VF (HAC-HDW1400R-VF)
Куполна камера Dahua 4.1 Megapixel 1080P, Day&Night, HDCVI, HAC-HDW1400R-VF (HAC-HDW1400R-VF)
Описание на продукта
Dahua HAC-HDW1400R-VF 4MP HDCVI IR Eyeball Camera > Max 30fps@4MP > HD and SD output switchable > 2.7-13.5mm vari-focal lens > Max. IR length 30m, Smart IR > IP67, DC12V...
Параметри на продукта
Производител
DAHUA
Параметри на продукта
Производител
DAHUA
Описание на продукта
Dahua HAC-HDW1400R-VF

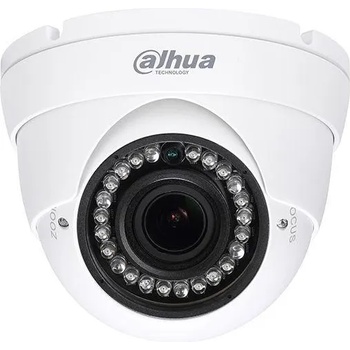

4MP HDCVI IR Eyeball Camera
> Max 30fps@4MP
> HD and SD output switchable
> 2.7-13.5mm vari-focal lens
> Max. IR length 30m, Smart IR
> IP67, DC12V
Camera:
Image Sensor- 1/3" CMOS
Effective Pixels- 2688(H)×1520(V), 4.1MP
Scanning System- Progressive
Electronic Shutter Speed:
- PAL: 1/25~1/100000s
- NTSC: 1/30~1/100000s
Minimum Illumination- 0.03Lux/F1.3, 30IRE, 0Lux IR on
S/N Ratio- More than 65dB
IR Distance- Up to 30m (98feet)
IR On/Off Control- Auto / Manual
IR LEDs- 20
Lens:
Lens Type- Vari-focal lens / Fixed iris
Mount Type- Board-in
Focal Length- 2.7-13.5mm
Max Aperture- F1.3
Angle of View- H: 98°~26°
Focus Control- Manual
Close Focus Distance- 200mm/7.87''
DORI Distance:
Note: The DORI distance is a general proximity of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
Pan / Tilt / Rotation:
- Pan: 0° ~ 360°
- Tilt: 0° ~ 90°
- Rotation: 0° ~ 360°
Video:
Resolution- 4MP (2560×1440)
Frame Rate- 25/30fps@4MP, 25/30fps@1080P, 25/30fps@720P
Video Output- 1-channel BNC HDCVI high definition video output / CVBS video output (Can switch)
Day/Night- Auto (ICR) / Manual
OSD Menu- Multi-language
BLC Mode- BLC / HLC / DWDR
WDR- DWDR
Gain Control- AGC
Noise Reduction- 2D
White Balance- Auto / Manual
Smart IR- Auto / Manual
Certifications:
- CE (EN55032, EN55024, EN50130-4)
- FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
- UL (UL60950-1+CAN/CSA C22.2 No. 60950-1)
Interface:
Audio Interface- N/A
Eelectrical:
Power Supply- 12V DC ±25%
Power Consumption- Max 4.6W (12V DC, IR on)
Environmental:
Operating Conditions- -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH * Start up should be done at above -40°C (-40°F)
Storage Conditions- -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection &Vandal Resistance- IP67
Construction:
Casing- Aluminium
Dimensions- Φ119mm×97.4mm (Φ4.69"×3.83")
Net Weight- 0.56kg (1.23lb)
Gross Weight- 0.69kg (1.52lb)
4MP HDCVI IR Eyeball Camera
> Max 30fps@4MP
> HD and SD output switchable
> 2.7-13.5mm vari-focal lens
> Max. IR length 30m, Smart IR
> IP67, DC12V
Camera:
Image Sensor- 1/3" CMOS
Effective Pixels- 2688(H)×1520(V), 4.1MP
Scanning System- Progressive
Electronic Shutter Speed:
- PAL: 1/25~1/100000s
- NTSC: 1/30~1/100000s
Minimum Illumination- 0.03Lux/F1.3, 30IRE, 0Lux IR on
S/N Ratio- More than 65dB
IR Distance- Up to 30m (98feet)
IR On/Off Control- Auto / Manual
IR LEDs- 20
Lens:
Lens Type- Vari-focal lens / Fixed iris
Mount Type- Board-in
Focal Length- 2.7-13.5mm
Max Aperture- F1.3
Angle of View- H: 98°~26°
Focus Control- Manual
Close Focus Distance- 200mm/7.87''
DORI Distance:
Note: The DORI distance is a general proximity of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
Pan / Tilt / Rotation:
- Pan: 0° ~ 360°
- Tilt: 0° ~ 90°
- Rotation: 0° ~ 360°
Video:
Resolution- 4MP (2560×1440)
Frame Rate- 25/30fps@4MP, 25/30fps@1080P, 25/30fps@720P
Video Output- 1-channel BNC HDCVI high definition video output / CVBS video output (Can switch)
Day/Night- Auto (ICR) / Manual
OSD Menu- Multi-language
BLC Mode- BLC / HLC / DWDR
WDR- DWDR
Gain Control- AGC
Noise Reduction- 2D
White Balance- Auto / Manual
Smart IR- Auto / Manual
Certifications:
- CE (EN55032, EN55024, EN50130-4)
- FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
- UL (UL60950-1+CAN/CSA C22.2 No. 60950-1)
Interface:
Audio Interface- N/A
Eelectrical:
Power Supply- 12V DC ±25%
Power Consumption- Max 4.6W (12V DC, IR on)
Environmental:
Operating Conditions- -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH * Start up should be done at above -40°C (-40°F)
Storage Conditions- -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection &Vandal Resistance- IP67
Construction:
Casing- Aluminium
Dimensions- Φ119mm×97.4mm (Φ4.69"×3.83")
Net Weight- 0.56kg (1.23lb)
Gross Weight- 0.69kg (1.52lb)
