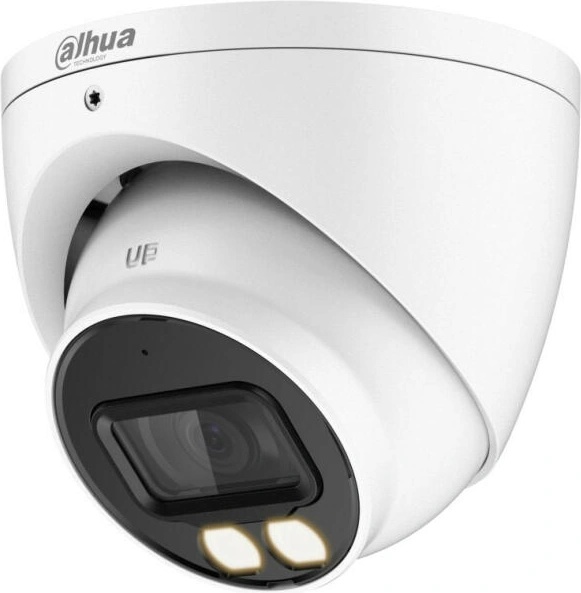

Dahua HAC-HDW1500T-IL-A-0280B-S2

Dahua HAC-HDW1500T-IL-A-0280B-S2

5MP Smart Dual Light HDCVI Fixed-focal Eyeball Camera

* The parameters and datasheets below can only be applied to1500-IL series.

* In order to use the 5MP 16:9 and the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001. 0000004.1. R. 220323 or later version.



> Max 25 fps@5MP (16:9 video output).

> Smart Dual Light.
> 40 m illumination distance.
> Super Adapt.
> Built-in MIC.
> 2.8 mm fixed lens
> CVI/CVBS/AHD/TVI switchable.
> IP67, 12 VDC.





Specifications:

CameraImage Sensor 5 MP CMOSMax. Resolution 2880 (H) × 1620 (V)Scanning System ProgressiveElectronic Shutter Speed PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 sMin. Illumination 0.05 [email protected] (Color, 30 IRE)
0.005 [email protected] (B/W, 30 IRE)
0 lux (Illuminator on)S/N Ratio >65 dBIllumination Distance IR: 40 m (131.23 ft)
Warm Light: 40 m (131.23 ft)Illuminator On/Off Control Auto/ManualIlluminator Number 2 (Warm light);2 (IR light)Angle Adjustment Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°LensLens Type Fixed-focalLens Mount M12Focal Length 2.8 mmMax. Aperture F1.6Field of View H: 106°; V: 56°; D: 125°;H: 92°; V: 48°; D: 109°Iris Control FixedClose Focus Distance 1.3 m (4.27 ft); 0.8 m (2.62 ft)DORI Distance Lens Detect Observe Recognize Identify2.8 mm

56 m

(183.73 ft)

22.4 m

(73.49 ft)

11.2 m

(36.75 ft)

5.6 m

(18.37 ft)

VideoVideo Frame Rate CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps;
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps;
NTSC: 4M@30 fps
CVBS:
PAL: 960H;
NTSC: 960HResolution 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)Day/Night Auto(ICR)/Color/B/WBLC BLC; HLC; DWDRWDR DWDRWhite Balance Auto; Area white balanceGain Control Auto/ManualNoise Reduction 2D NRIllumination Mode Smart IR&WL; WL Mode; IR ModeMirror YesPrivacy Masking Off/On (8 areas, rectangle)Certification Certifications CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14PortVideo Output Video output choices of CVI/TVI/AHD/CVBS by one BNC portAudio Input One channel built-in micPowerPower Supply 12 VDC ± 30%Power Consumption Max 4.5 W (12 VDC, WLED on)EnvironmentOperating Temperature –40 °C to +60 °C (–40 °F to +140 °F)Operating Humidity
