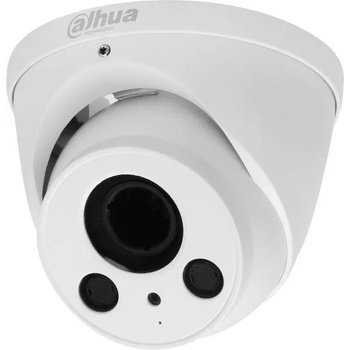

Dahua HAC-HDW2231R-Z

Dahua HAC-HDW2231R-Z

2MP Starlight HDCVI IR Eyeball Camera

Starlight, 120dB true WDR, 3DNR
Max 30fps@1080P
HD and SD output switchable
2.7-13.5mm motorized lens
Max. IR length 60m, Smart IR
IP67, DC12V

Camera
Image Sensor
1/2.8" CMOS

Effective Pixels
1937(H)×1097(V), 2.1MP

Scanning System
Progressive

Electronic Shutter Speed
PAL: 1/4s~1/100000s
NTSC: 1/3s~1/100000s

Minimum Illumination
0.005Lux/F1.3, 30IRE, 0Lux IR on

S/N Ratio
More than 65dB

IR Distance
Up to 60m (197feet)

IR On/Off Control
Auto / Manual

IR LEDs
2

Lens
Lens Type
Motorized lens / Fixed iris

Mount Type
Board-in

Focal Length
2.7-13.5mm

Max Aperture
F1.3

Angle of View
H: 102°~29°

Focus Control
Auto / Manual

Close Focus Distance
200mm
7.87''

DORI Distance
Note: The DORI distance is a general proximity of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

Distance

Wide
Tele
Detect
25px/m
(8px/ft)
47m(154ft)
153m(502ft)

Observe
63px/m
(19px/ft)
19m(62ft)
61m(200ft)

Recognize
125px/m
(38px/ft)
9m(30ft)
31m(102ft)

Identify
250ppm
(76px/ft)
5m(16ft)
15m(49ft)

Pan / Tilt / Rotation
Pan/Tilt/Rotation
Pan: 0° ~ 360°
Tilt: 0° ~ 78°
Rotation: 0° ~ 360°

Video
Resolution
1080P (1920×1080)

Frame Rate
25/30fps@1080P, 25/30fps@720P

Video Output
1-channel BNC high definition video output / CVBS video output (Can switch)

Day/Night
Auto (ICR) / Manual

OSD Menu
Multi-language

BLC Mode
BLC / HLC / WDR
WDR
120dB

Gain Control
AGC

Noise Reduction
2D / 3D

White Balance
Auto / Manual

Smart IR
Auto / Manual

Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No. 60950-1)

Interface
Audio Interface
N/A

Eelectrical
Power Supply
12V DC ±25%

Power Consumption
Max 7.2W (12V DC, IR on)

Environmental
Operating Conditions
-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
* Start up should be done at above -40°C (-40°F)

Storage Conditions
-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

Ingress Protection &Vandal Resistance
IP67

Construction

Casing
Aluminium

Dimensions
Φ122mm×104.9mm (Φ4.8"×4.13")

Net Weight
0.59kg (1.30lb)

Gross Weight
0.74kg (1.63lb)
