Dahua HAC-HFW1200S-0280B-S4
· Max 30fps@1080P · HD and SD output switchable · 3.6mm fixed lens (2.8mm, 6mm optional) · Max. IR length 30m, Smart IR · IP67, DC12V Technical Specification Camera ...
30,42 €|59,50 лв.*
В наличност
Вид:
Най-евтини оферти (1)

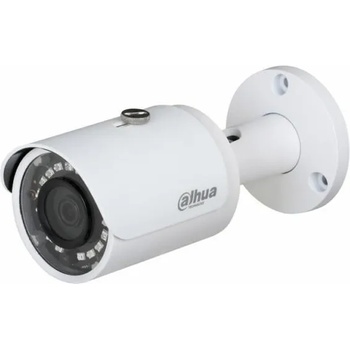

Dahua HAC-HFW1200S-0280B-S4
Камера Dahua (HAC-HFW1200S-0280B-S4) (HACHFW1200S28BS4)
Описание на продукта
· Max 30fps@1080P · HD and SD output switchable · 3.6mm fixed lens (2.8mm, 6mm optional) · Max. IR length 30m, Smart IR · IP67, DC12V Technical Specification Camera ...
Параметри на продукта
Производител
DAHUA
Параметри на продукта
Производител
DAHUA
Описание на продукта
· Max 30fps@1080P
· HD and SD output switchable
· 3.6mm fixed lens (2.8mm, 6mm optional)
· Max. IR length 30m, Smart IR
· IP67, DC12V
Technical Specification
Camera
Image Sensor: 1/2.7" CMOS
Effective Pixels: 1920(H)×1080(V), 2MP
Scanning System: Progressive
Electronic Shutter Speed: PAL: 1/25~1/100000s, NTSC: 1/30~1/100000s
Minimum Illumination: 0.02Lux/F1.85, 30IRE, 0Lux IR on
S/N Ratio: More than 65dB
IR Distance: Up to 30m (98feet)
IR On/Off: Control Auto / Manual
IR LEDs: 18
Lens
Lens Type: Fixed lens / Fixed iris
Mount Type: Board-in
Focal Length: 3.6mm (2.8mm, 6mm Optional)
Max Aperture: F1.85
Angle of View H: 87.5° (103°, 54.7°)
Focus Control: N/A
Close Focus Distance: 500mm (900mm, 2000mm), 19.69'' (35.43", 78.74'')
Pan / Tilt / Rotation
Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotation: 0° ~ 360°
Video
Resolution: 1080P (1920×1080)
Frame Rate: 25/30fps@1080P, 25/30/50/60fps@720P
Video Output: 1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night: Auto (ICR) / Manual
OSD Menu: Multi-language
BLC Mode: BLC / HLC / DWDR
WDR: DWDR
Gain Control: AGC
Noise Reduction: 2D
White Balance: Auto / Manual
Smart IR: Auto / Manual
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No. 60950-1)
Interface
Audio Interface: N/A
Eelectrical
Power Supply: 12V DC ±30%
Power Consumption: Max 4.3W (12V DC, IR on)
Environmental
Operating Conditions: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
* Start up should be done at above -40°C (-40°F)
Storage Conditions: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection & Vandal: Resistance IP67
Construction
Casing: Aluminium
Dimensions: 164.7mm×70mm×71.6mm (6.48"×2.76"×2.82")
Net Weight: 0.37kg (0.82lb)
Gross Weight: 0.46kg (1.01lb)
· HD and SD output switchable
· 3.6mm fixed lens (2.8mm, 6mm optional)
· Max. IR length 30m, Smart IR
· IP67, DC12V
Technical Specification
Camera
Image Sensor: 1/2.7" CMOS
Effective Pixels: 1920(H)×1080(V), 2MP
Scanning System: Progressive
Electronic Shutter Speed: PAL: 1/25~1/100000s, NTSC: 1/30~1/100000s
Minimum Illumination: 0.02Lux/F1.85, 30IRE, 0Lux IR on
S/N Ratio: More than 65dB
IR Distance: Up to 30m (98feet)
IR On/Off: Control Auto / Manual
IR LEDs: 18
Lens
Lens Type: Fixed lens / Fixed iris
Mount Type: Board-in
Focal Length: 3.6mm (2.8mm, 6mm Optional)
Max Aperture: F1.85
Angle of View H: 87.5° (103°, 54.7°)
Focus Control: N/A
Close Focus Distance: 500mm (900mm, 2000mm), 19.69'' (35.43", 78.74'')
Pan / Tilt / Rotation
Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotation: 0° ~ 360°
Video
Resolution: 1080P (1920×1080)
Frame Rate: 25/30fps@1080P, 25/30/50/60fps@720P
Video Output: 1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night: Auto (ICR) / Manual
OSD Menu: Multi-language
BLC Mode: BLC / HLC / DWDR
WDR: DWDR
Gain Control: AGC
Noise Reduction: 2D
White Balance: Auto / Manual
Smart IR: Auto / Manual
Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No. 60950-1)
Interface
Audio Interface: N/A
Eelectrical
Power Supply: 12V DC ±30%
Power Consumption: Max 4.3W (12V DC, IR on)
Environmental
Operating Conditions: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
* Start up should be done at above -40°C (-40°F)
Storage Conditions: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection & Vandal: Resistance IP67
Construction
Casing: Aluminium
Dimensions: 164.7mm×70mm×71.6mm (6.48"×2.76"×2.82")
Net Weight: 0.37kg (0.82lb)
Gross Weight: 0.46kg (1.01lb)
Липсва или е неправилен важен параметър? Предоставената информация е само за ориентиране, затова ви съветваме да проверите дали предлаганият продукт има ключовите параметри от които се нуждаете, преди да купите от магазина по ваш избор. Въпреки че се стремим към максимална точност на информацията, за съжаление не можем винаги да гарантираме 100% съответствие. Цените на продуктите са с включен ДДС.
Продуктът все още няма отзиви.
