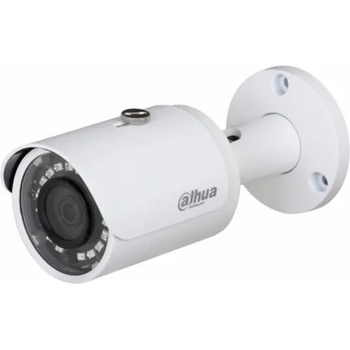

Dahua HAC-HFW1230SP-0360B

Starlight
Max. 30fps@1080P
HD and SD output switchable
3.6mm fixed lens (2.8mm, 6mm optional)
Max. IR length 30m, Smart IR
IP67, DC12V

Technical Specification

Camera
Image Sensor: 1/2.8" CMOS
Effective Pixels: 1920(H)×1080(V), 2MP
Scanning System: Progressive
Electronic Shutter Speed: PAL: 1/25~1/100000s
Minimum Illumination: 0.005Lux/F1.6, 30IRE, 0Lux IR on
S/N Ratio: More than 65dB
IR Distance: Up to 30m (98feet)
IR On/Off Control: Auto / Manual
IR LEDs: 18

Lens
Lens Type: Fixed lens / Fixed iris
Mount Type: Board-in
Focal Length: 3.6mm (2.8mm, 6mm Optional)
Max Aperture: F1.6
Angle of View: H: 86.9° (106.0°/52.9°)
Focus Control: N/A
Close Focus Distance: 1200mm (600mm/2400mm) 47.2'' (23.6''/94.5'')

Pan / Tilt / Rotation
Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotation: 0° ~ 360°

Video
Resolution: 1080P (1920×1080)
Frame Rate: 25/30fps@1080P, 25/30/50/60fps@720P
Video Output: 1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night: Auto (ICR) / Manual
OSD Menu: Multi-language
BLC Mode: BLC / HLC / DWDR
WDR: DWDR
Gain Control: AGC
Noise Reduction: 2D
White Balance: Auto / Manual
Smart IR: Auto / Manual

Certifications
CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No. 60950-1)

Interface
Audio Interface: N/A

Electrical
Power Supply: 12V DC ±30%
Power Consumption: Max 4.5W (12V DC, IR on)

Environmental
Operating Conditions: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
* Start up should be done at above -40°C (-40°F)
Storage Conditions: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal: Resistance IP67

Construction
Casing: Aluminium
Dimensions: 164.7mm×70mm×71.6mm (6.48"×2.76"×2.82")
Net Weight: 0.36kg (0.79lb)
Gross Weight: 0.45kg (0.99lb)
