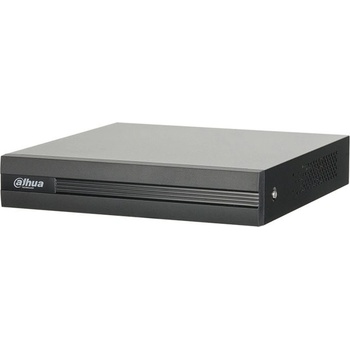

Dahua Хибриден видеорекордер Dahua XVR1B08H-I-V2, 8 канален, AI Coding/H. 265+/H. 265/H. 264+/H. 264, 1x SATA до 16TB, 2x USB, 1x RJ-45, 1x HDMI, 1x VGA, 1x RCA (XVR1B08H-I-V2)

Dahua XVR1B08H-I-V2



SystemMain Processor Industrial-grade processorOperating System Embedded LinuxOperating Interface Web; Local GUISMD PlusSMD Plus by Recorder 8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition changeAudio and VideoAnalog Camera Input 8 BNC ports, CVI access by default, supports HDCVI/ AHD/TVI/CVBS auto-detectCamera Input 1. CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/3 0fps.
2. TVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps.
3. AHD: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps.
4. CVBS: PAL/NTSCIP Camera Input

Up to 12 channels of IPC access

4 IP channels by default + 8 channels (analog channels are converted to IP channels)

incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps

*After IP channels are added beyond the existing channels, the AI Function (SMD) will be disabled.

Encoding Capacity

Main Stream:
All channel 5M-N@ (1 fps–10 fps); 4M-N, 1080p@ (1 fps–15 fps); 1080N, 720p, 960H, D1, CIF@ (1 fps–25/30 fps)
Sub stream:

D1, CIF@ (1 fps–15 fps)

Dual-stream YesVideo Bit Rate 32 kbps–6144 kbpsAudio Sampling 8 kHz, 16 bitAudio Bit Rate 64 kbpsVideo Output

1 HDMI, 1 VGA

HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

Multi-screen Display When IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16Third-party Camera Access ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; SamsungCompression StandardVideo Compression AI Coding; H. 265+; H. 265; H. 264+; H. 264Audio Compression G. 711a; G. 711u; PCMNetworkNetwork Protocol HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2PMobile Phone Access iOS, AndroidInteroperability ONVIF 21.12; CGI ConformantBrowser Chrome
IE9 or later
FirefoxNetwork Mode Single-address modeRecording PlaybackRecord Mode General, motion detection, alarm, POSRecording Playback 1/4/8/9Backup Method USB device and networkPlayback Mode Instant playback, general playback, event playback, tag playbackAlarmGeneral Alarm Motion detection, video loss, tamperingAnomaly Alarm No disk, disk error, low space, offline, ip conflict, MAC conflictAlarm Linkage Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; emailPortsAudio Input 1-channel RCA
8-channel BNC (Coaxial Audio)Audio Output 1-channel RCATwo-way Talk Yes (share the same audio input with the first channel)HDD Interface 1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature. USB 2 USB ports (USB 2.0)HDMI 1VGA 1Network Port 1 (10/100 Mbps Ethernet port, RJ-45)GeneralPower Supply 12VDC, 1.5APower Consumption  Net Weight 0.57 kg (1.26 lb)Gross Weight 1.05 kg (2.31 lb)Product Dimensions 198.3 mm × 203.4 mm × 41.5 mm
(7.81'' × 8.01'' × 1.63'') (W × D × H)Packaging Dimensions 332.0 mm × 240.0 mm × 64.0 mm (13.07" × 9.45" × 2.52") (W× D × H)
