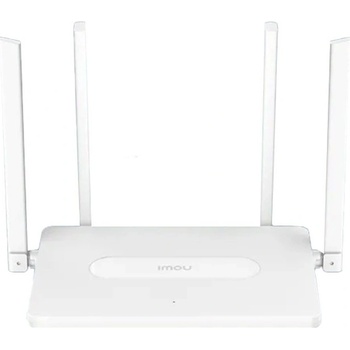

Dahua IMOU HR12G

Imous HR12G

Smooth entertainment with AC1200 dual band Wi-Fi
Imou HR12G creates a blazing fast Dual-Band Wi-Fi network with 802.11ac technology, ideal for different scenarios.
IMOU Link mesh networking

Imou-link is a simple way to form a mesh network with a single Wi-Fi name for seamless roaming whole home coverage. Stream accelerate

Imou IPC streaming data uses a specific channel for fluent monitoring and to reduce cloud record loss, even in crowded Wi-Fi signals while the general router uses normal transmission.

Key Features
Dual-Band Wi-Fi, speed up to AC1200 (300+867Mbps)
4 external 5dBi antennas
1x Gigabit WAN, 3x Gigabit LAN
Connections：Maximum 64 clients，32 recommended
Support Imou Camera Wi-Fi Auto-sync
Support Imou-Link Mesh
Support Stream Accelerate
Support IPv6
Support IPTV
Support Parental Control
Support Guest Wi-Fi
Support Imoulife App

Hardware
ROM 16MB
RAM 128MB
Network Port 1x Gigabit WAN + 3x Gigabit LAN
Button 1x WPS/Mesh, 1x Reset
LED Indicator two-color light (red and green)

Software
WAN Connection Type PPPoE/Dynamic IP/Static IP
IPv4/IPv6 √
VPN PP2P，L2TP QoS √
Management PC Web config page, mobile web config page, App DDNS √
DMZ √
Port Fword √
UPnP √

Wi-Fi
Frequency 2.4GHz & 5GHz
Protocol 2.4GHz：IEEE 802.11b/g/n
5GHz：IEEE 802.11a/n/ac
Wi-Fi Speed 2.4GHz：300Mbps 5GHz：867Mbps
Wi-Fi Antennas 4 external 5dBi antennas
Wireless Security Support WPA-PSK/WPA2-PSK encription Support Hidden SSID
Other Features Wi-Fi schedule, Imou Camera Wi-Fi Auto-sync, Imou-Link Mesh, Stream Accelerate

Others
Power Adapter DC12V1A
Dimension 188×120×26mm
6976391037465
