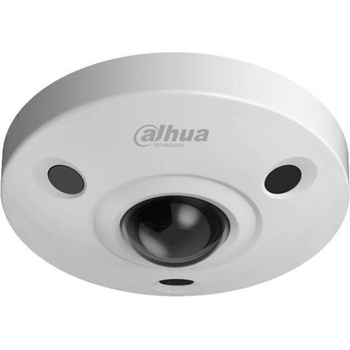

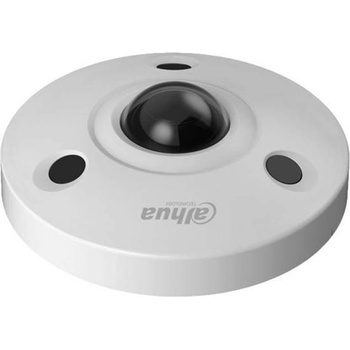

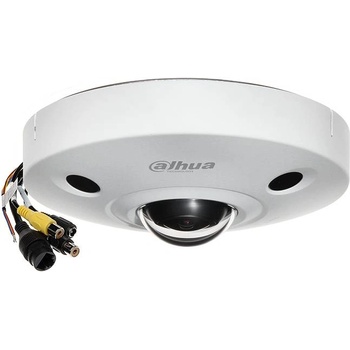

Dahua IPC-EBW8630-IVC

Camera

Image Sensor

1/1.8 6Megapixel progressive scan CMOS

Effective Pixels

3072(H)x2048(V)

RAM/ROM

1024MB/128MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.005Lux/F2.8( Color, 1/3s, 30IRE)

0.05Lux/F2.8( Color, 1/30s, 30IRE)

0Lux/F2.8(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 10m

IR On/Off Control

Auto/ Manual

IR LEDs

3

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

1.3mm

Max. Aperture

F2.8

Angle of View

H: 180˚, V:180˚

Optical Zoom

N/A

Focus Control

Fixed

Close Focus Distance

N/A

DORI Distance

Detect

Observe

Recognize

Identify

21m

8m

4m

2m

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

N/A

Intelligence

IVS

Tripwire, Intrusion

Advanced Intelligent Functions

Heat Max

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / DWDR

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization(EIS)

N/A

Smart IR

Support

Defog

Support

Digital Zoom

16x

Flip

N/A

Mirror

N/A

Privacy Masking

Off / On (4 Area, Rectangle)

Video

Compression

H. 265/H. 264

Streaming Capability

3 Streams

Resolution

6M(3072×2048)/ 4M(2048x2048)/

3M(2048x1536)/ UXGA(1600x1200)/

1.3M(1280x960)/ D1(704×576/704×480)/ CIF(352×288/352×240)

Frame Rate

Main Stream: 6M(1~25/30fps)

Sub Stream: D1(1 ~ 25/30fps)

Third Stream: 1.3M(1 ~ 25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H. 265: 3Kbps~ 9984Kbps

H. 264: 8Kbps~ 16384Kbps

Audio

Compression

G. 711a/G. 711Mu/AAC/ G. 726

Network

Ethernet

RJ-45 (100/1000Base-T)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;S MTP;FTP;DHCP;DNS;DDNS;

PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjou r;802.1x;Multicast;ICMP;IGMP;SNMP

Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, Easy4ip

Smart Phone

IOS, Android

Interface

Video Interface

N/A

Audio Interface

1/1 channel In/Out, 1 Built-in Mic

RS485

N/A

Alarm

2 channel In: 5mA 5VDC

2 channel Out: 1A 30VDC / 0.5A 50VAC

Electrical

Power Supply

DC12V, PoE (802.3af)(Class 0)

Power Consumption
