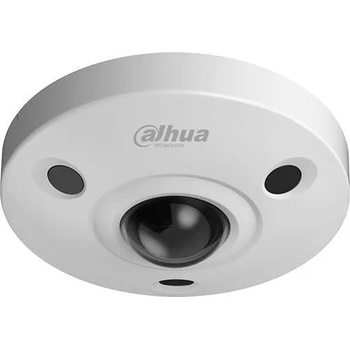

Dahua IPC-EBW8630

Dahua IPC-EBW8630

6MP Panoramic Network IR Fisheye Camera
> 1/1.8 6Megapixel progressive scan STARVIS CMOS
> H. 265/H. 264 triple-stream encoding
> Max 25/30fps@6M(3072x2048)
> Multiple dewarped Mode
> Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Smart detection
> Intelligent Function
> Max. IR LEDs length 10m
> Micro SD memory, IP67, IK10, PoE

Camera:

Image Sensor- 1/1.8 6Megapixel progressive scan CMOS

Effective Pixels- 3072(H)x2048(V)

RAM/ROM- 1024MB/128MB

Scanning System- Progressive

Electronic Shutter Speed- Auto/Manual, 1/3~1/100000s

Minimum Illumination:
- 0.002Lux/F2.0( Color, 1/3s, 30IRE)

- 0.02Lux/F2.0( Color, 1/30s, 30IRE)

- 0Lux/F2.0(IR on)

S/N Ratio- More than 50dB

IR Distance- Distance up to 10m(33ft)

IR On/Off Control- Auto/ Manual

IR LEDs- 3

Lens:

Lens Type- Fixed

Mount Type- Board-in

Focal Length- 1.7mm

Max. Aperture- F2.0

Angle of View- H: 180˚, V:180˚

Optical Zoom- N/A

Focus Control- Fixed

Close Focus Distance- N/A

DORI Distance:
Detect- 28m(92ft)
Observe- 11m(36ft)
Recognize- 6m(19ft)
Identify- 3m(9ft)

Pan/Tilt/Rotation:
Pan/Tilt/Rotation Range- N/A

Intelligence-

IVS- Tripwire, Intrusion

Advanced Intelligent Functions- Heat Map

Video:

Compression- H. 265/H. 264

Streaming Capability- 3 Streams

Resolution- 6M(3072×2048)/ 4M(2048x2048)/ 3M(2048x1536)/ UXGA(1600x1200)/ 1.3M(1280x960)/ D1(704×576/704×480)/ CIF(352×288/352×240)

Frame Rate:
- Main Stream: 6M(1~25/30fps)

- Sub Stream: D1(1 ~ 25/30fps)

- Third Stream: 1.3M(1 ~ 25/30fps)

Bit Rate Control- CBR/VBR

Bit Rate:
- H. 265: 3Kbps~ 9984Kbps

- H. 264: 8Kbps~ 16384Kbps

Day/Night- Auto(ICR) / Color / B/W

BLC Mode- BLC / HLC / DWDR

White Balance- Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control- Auto/Manual

Noise Reduction- 3D DNR

Motion Detetion- Off / On (4 Zone, Rectangle)

Region of Interest- Off / On (4 Zone)

Electronic Image Stabilization(EIS)- N/A

Smart IR- Support

Defog- Support

Digital Zoom- 16x

Flip- N/A

Mirror- N/A

Privacy Masking- Off / On (4 Area, Rectangle)

Audio:
Compression- G. 711a/G. 711Mu/AAC/ G. 726

Network:
Ethernet- RJ-45 (100/1000Base-T)

Protocol- HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP ;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NT P;Bonjour;802.1x;Multicast;ICMP;IGMP;SNM P

Interoperability- ONVIF, PSIA, CGI

Streaming Method- Unicast / Multicast

Max. User Access- 10 Users/20 Users

Edge Storage:
- NAS

- Local PC for instant recording

- Mirco SD card 128GB

Web Viewer- IE, Chrome, Firefox, Safari

Management Software- Smart PSS, DSS, Easy4ip

Smart Phone- IOS, Android

Certifications:
- CE (EN 60950:2000)

- UL:UL60950-1

- FCC: FCC Part 15 Subpart B

Interface:
Video Interface- N/A

Audio Interface- 1/1 channel In/Out, 1 Built-in Mic

RS485- N/A

Alarm:
- 2 channel In: 5mA 5VDC
- 2 channel Out: 1A 30VDC / 0.5A 50VAC

Electrical:
Power Supply- DC12V, PoE (802.3af)(Class 0)

Power Consumption-
