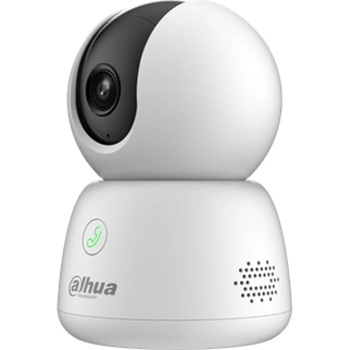

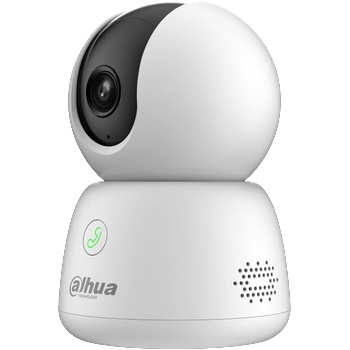

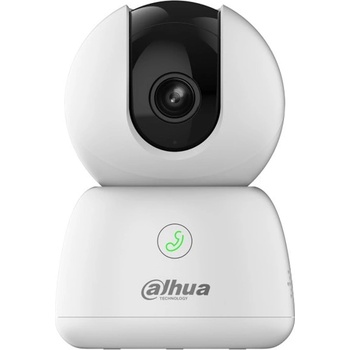

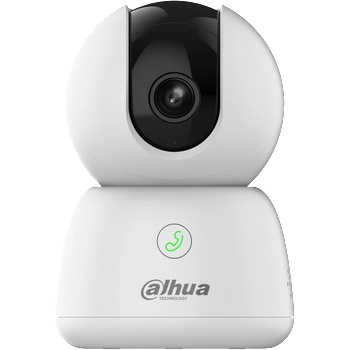

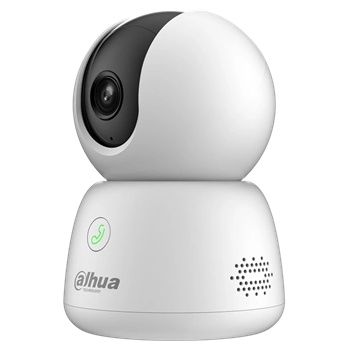

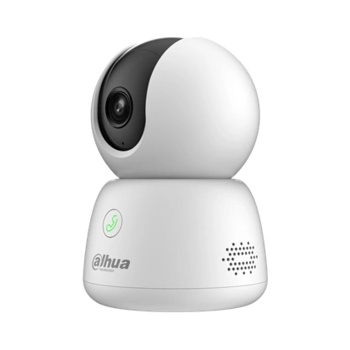

Dahua IPC-H5B-0360B

Specifications

CameraImage Sensor 1/3" CMOSMax. Resolution 2880 (H) × 1620 (V)Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 sIllumination Distance Up to 10 m (32.81 ft) (IR)Illuminator On/Off Control AutoIlluminator Number 1 (IR LED)Angle Adjustment Tilt: -5° to 80°
Pan: 0° to 350°LensMax. Aperture F2.0Field of View

2.8mm: H: 99°; V: 55°; D: 115°

3.6mm: H: 74°; V: 41°; D: 88°

IntelligenceHum an Detection YesVideoVideo Compression H. 265Video Frame Rate Main stream: 2880 × 1620@(1-25/30 fps)
sub stream: 640 × 360@(1-25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. Resolution 5M (2880 × 1620); nHD (640 × 360)Video Bit Rate H. 265: 40 kbps–4096 kbpsDay/Night Auto(ICR)/Color/B/WWDR DWDRMotion Detection YesImage Rotation 0°/180°AudioBuilt-in MIC YesBuilt-in Speaker YesAudio Compression G. 711aNetworkNetwork Port RJ-45 (10/100 Base-T)Wi-Fi IEEE 802.11b/g/n/ax 2.412-2.472 GHz, 2.4 G, ≤[email protected] Micro SD card (up to 256 GB)Management Software DMSSMobile Client iOS;AndroidCertificationCertifications CEPowerPower Supply 5 VDC, 1 APower Consumption Basic: 1.9 W;
Max. : 3.8 W (live + IR + PT rotation)EnvironmentOpe rating Temperature –10 °C to +45 °C (+14 °F to + 113 °F)Operating Humidity ≤95%StructureCasing Material PlasticProduct Dimensions φ84 mm × 123.8 mm (φ3.31" × 4.87")Net Weight 206.5 g (0.46 lb)
