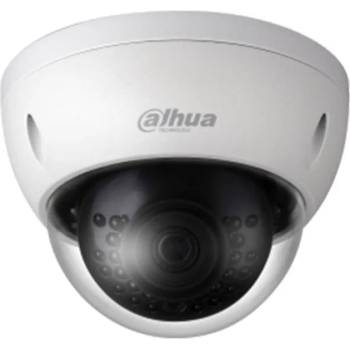

Dahua IPC-HDBW1420E(2.8mm)
Dahua IPC-HDBW1420E-0280B 4MP IR Mini-Dome Network Camera > 1/3 4Megapixel progressive CMOS > H. 264+ & H. 264 dual-stream encoding > 20fps@4M(2688×1520) &25/30fps@3M(2304×1296)...
104,25 €|203,90 лв.*
В наличност
Вид:
Най-евтини оферти (1)
Dahua IPC-HDBW1420E(2.8mm)
Мрежова ip камера dahua ipc-hdbw1420e-0280b (ipc-hdbw1420e-0280b)
Описание на продукта
Dahua IPC-HDBW1420E-0280B 4MP IR Mini-Dome Network Camera > 1/3 4Megapixel progressive CMOS > H. 264+ & H. 264 dual-stream encoding > 20fps@4M(2688×1520) &25/30fps@3M(2304×1296)...
Параметри на продукта
Производител
DAHUA
Оформление
Куполна камера
Минимално фокусно разстояние
2.8 мм
Максимално фокусно разстояние
2.8 мм
Параметри на продукта
Производител
DAHUA
Оформление
Куполна камера
Минимално фокусно разстояние
2.8 мм
Максимално фокусно разстояние
2.8 мм
Описание на продукта
Dahua IPC-HDBW1420E-0280B
4MP IR Mini-Dome Network Camera
> 1/3 4Megapixel progressive CMOS
> H. 264+ & H. 264 dual-stream encoding
> 20fps@4M(2688×1520) &25/30fps@3M(2304×1296)
> DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8 mm fixed lens (3.6 mm optional)
> Max IR LEDs Length 30m
> IP67, IK10, PoE
Camera:
Image Sensor- 1/3 4Megapixel progresive CMOS
Effective Pixels- 2688(H)x1520(V)
RAM/ROM- 256MB/16MB
Scanning System- Progressive
Electronic Shutter Speed- Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination- 0.31Lux/F2.2(Color), 0Lux/F2.2(IR on)
S/N Ratio- More than 56dB
IR Distance- Distance up to 30m(98ft)
IR On/Off Control- Auto/ Manual
IR LEDs- 12
Lens:
Lens Type- Fixed
Mount Type- Board-in
Focal Length- 2.8 mm (3.6 mm optional)
Max. Aperture- F2.0/F2.2
Angle of View- H:106°/83°, V:56°/44°
Focus Control- Fixed
Close Focus Distance- N/A
DORI Distance:
Lens:
2.8 mm:
Detect- 63m(207ft)
Observe- 25m(82ft)
Recognize- 13m(43ft)
Identify- 6m(20ft)
3.6 mm:
Detect- 80m(262ft)
Observe- 32m(105ft)
Recognize- 16m(52ft)
Identify- 8m(26ft)
PTZ:
Pan/Tilt Range- Pan:0° ~355° ;Tilt:0° ~65° ;Rotation:0° ~355°
Video:
Compression- H. 264+/H. 264
Streaming Capability- 2 Streams
Resolution:
4M(2688x1520/2560x1440)/3M(2304×129 6)/
1080P(1920×1080)/720P(1280×720)/
D1(704×576/704×480)/ CIF(352×288/352×240)
Frame Rate:
4M(1 ~ 20fps)/3M (1 ~ 25/30fps)/2M (1 ~ 25/30fps)
D1/CIF(1 ~ 25/30fps)
Bit Rate Control- CBR/VBR
Bit Rate- H264H:80K ~ 10240Kbps
Day/Night- Auto(ICR) / Color / B/W
BLC Mode- BLC / HLC / DWDR
White Balance- Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control- Auto/Manual
Noise Reduction- 3D DNR
Motion Detetion- Off / On (4 Zone, Rectangle)
Region of Interest- Off / On (4 Zone)
Electronic Image- Support
Smart IR- Support
Digital Zoom- 16x
Flip- 0°/90°/180°/270°
Mirror- Off / On
Privacy Masking- Off / On (4 Area, Rectangle)
Audio:
Compression- N/A
Network:
Ethernet- RJ-45 (10/100Base-T)
Protocol:
HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP ;FTP;
DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP ;NTP;
Bonjour;802.1x;Multicast;ICMP;IGMP;
Interoperability- ONVIF, PSIA, CGI
Streaming Method- Unicast / Multicast
Max. User Access- 10 Users/20 Users
Edge Storage- NAS(Network Attached Storage), Local PC for instant recording
Web Viewer- IE, Chrome, Firefox, Safari
Management Software- Smart PSS, DSS, Easy4ip
Smart Phone- iPhone, iPad, Android Phone
Certifications:
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video Interface- N/A
Audio Interface- N/A
RS485- N/A
Alarm- N/A
Electrical
Power Supply- DC12V PoE (802.3af)(Class 0)
Power Consumption-
4MP IR Mini-Dome Network Camera
> 1/3 4Megapixel progressive CMOS
> H. 264+ & H. 264 dual-stream encoding
> 20fps@4M(2688×1520) &25/30fps@3M(2304×1296)
> DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.8 mm fixed lens (3.6 mm optional)
> Max IR LEDs Length 30m
> IP67, IK10, PoE
Camera:
Image Sensor- 1/3 4Megapixel progresive CMOS
Effective Pixels- 2688(H)x1520(V)
RAM/ROM- 256MB/16MB
Scanning System- Progressive
Electronic Shutter Speed- Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination- 0.31Lux/F2.2(Color), 0Lux/F2.2(IR on)
S/N Ratio- More than 56dB
IR Distance- Distance up to 30m(98ft)
IR On/Off Control- Auto/ Manual
IR LEDs- 12
Lens:
Lens Type- Fixed
Mount Type- Board-in
Focal Length- 2.8 mm (3.6 mm optional)
Max. Aperture- F2.0/F2.2
Angle of View- H:106°/83°, V:56°/44°
Focus Control- Fixed
Close Focus Distance- N/A
DORI Distance:
Lens:
2.8 mm:
Detect- 63m(207ft)
Observe- 25m(82ft)
Recognize- 13m(43ft)
Identify- 6m(20ft)
3.6 mm:
Detect- 80m(262ft)
Observe- 32m(105ft)
Recognize- 16m(52ft)
Identify- 8m(26ft)
PTZ:
Pan/Tilt Range- Pan:0° ~355° ;Tilt:0° ~65° ;Rotation:0° ~355°
Video:
Compression- H. 264+/H. 264
Streaming Capability- 2 Streams
Resolution:
4M(2688x1520/2560x1440)/3M(2304×129 6)/
1080P(1920×1080)/720P(1280×720)/
D1(704×576/704×480)/ CIF(352×288/352×240)
Frame Rate:
4M(1 ~ 20fps)/3M (1 ~ 25/30fps)/2M (1 ~ 25/30fps)
D1/CIF(1 ~ 25/30fps)
Bit Rate Control- CBR/VBR
Bit Rate- H264H:80K ~ 10240Kbps
Day/Night- Auto(ICR) / Color / B/W
BLC Mode- BLC / HLC / DWDR
White Balance- Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control- Auto/Manual
Noise Reduction- 3D DNR
Motion Detetion- Off / On (4 Zone, Rectangle)
Region of Interest- Off / On (4 Zone)
Electronic Image- Support
Smart IR- Support
Digital Zoom- 16x
Flip- 0°/90°/180°/270°
Mirror- Off / On
Privacy Masking- Off / On (4 Area, Rectangle)
Audio:
Compression- N/A
Network:
Ethernet- RJ-45 (10/100Base-T)
Protocol:
HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP ;FTP;
DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP ;NTP;
Bonjour;802.1x;Multicast;ICMP;IGMP;
Interoperability- ONVIF, PSIA, CGI
Streaming Method- Unicast / Multicast
Max. User Access- 10 Users/20 Users
Edge Storage- NAS(Network Attached Storage), Local PC for instant recording
Web Viewer- IE, Chrome, Firefox, Safari
Management Software- Smart PSS, DSS, Easy4ip
Smart Phone- iPhone, iPad, Android Phone
Certifications:
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
Interface
Video Interface- N/A
Audio Interface- N/A
RS485- N/A
Alarm- N/A
Electrical
Power Supply- DC12V PoE (802.3af)(Class 0)
Power Consumption-
