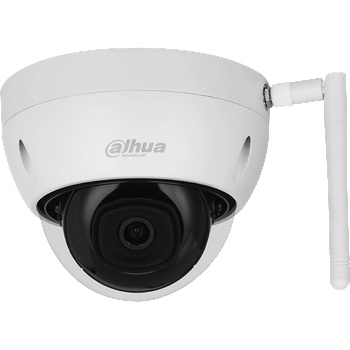

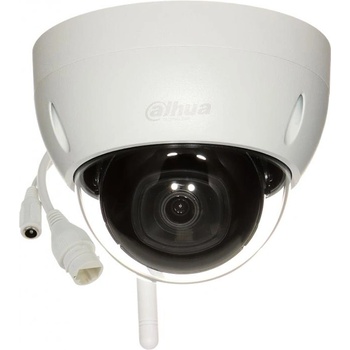

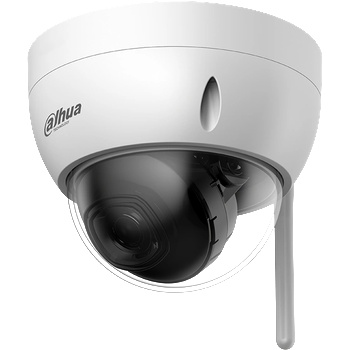

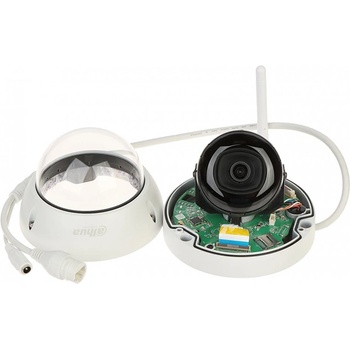

Dahua IPC-HDBW1430DE-SW-0280B

Dahua IPC-HDBW1430DE-SW-0280B

Camera
Image Sensor
1/3" CMOS

Max. Resolution
2560 (H) × 1440 (V)

ROM
16 MB

RAM
64 MB

Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s

Min. Illumination
0.025 [email protected] (Color, 30 IRE)
0.0025 [email protected] (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio
>56 dB

Illumination Distance
30 m (98.43 ft) (IR LED)

Illuminator On/Off Control
Auto; Manual

Illuminator Number
3 (IR LED)

Pan/Tilt/Rotation Range
Pan: 0–355°
Tilt: 0–75°
Rotation: 0–355°

Lens
Lens Type
Fixed-focal

Lens Mount
M12

Focal Length
2.8 mm; 3.6 mm

Max. Aperture
F2.0

Field of View
2.8 mm:
Horizontal: 90°; Vertical: 50°; Diagonal: 107°
3.6 mm:
Horizontal: 76°; Vertical: 40°; Diagonal: 92°

Iris Control
Fixed

Close Focus Distance
2.8 mm: 1.0 m (3.28 ft)
3.6 mm: 1.4 m (4.59 ft)

DORI Distance

Video

Video Compression
H. 264B; H. 264; H. 264H; H. 265

Smart Codec
Smart H. 265+;Smart H. 264+

Video Frame Rate
Main stream:
2560 × 1440@ (1–20 fps)
Sub stream:
704 × 576@ (1–25 fps)
704 × 480@ (1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability
2 streams

Resolution
2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720)

Bit Rate Control
CBR/VBR

Video Bit Rate
H264: 24 kbps–4096 kbps
H265: 9 kbps–4096 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC
Yes

WDR
DWDR
White Balance
Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control
Auto
Noise Reduction
3D NR
Motion Detection
OFF/ON (4 areas, rectangular)
Region of Interest (RoI)
Yes (4 areas)

Smart Illumination
Yes

Image Rotation
0°/180°

Mirror
Yes

Alarm
Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; SMD (human)

Network
Network Port
RJ-45 (10/100 Base-T)

Wi-Fi
IEEE802.11b/g/n 2.4–2.4835 GHz

Wireless Range
Up to 80 m (The performance varies based on actual environment)

SDK and API
Yes

Cyber Security
Video encrypton; confguraton encrypton; Digest; WSSE; account lockout; security logs; generaton and importng of X. 509 certfcaton; HTTPS; trusted boot; trusted executon; trusted upgrade

Network Protocol
IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast;RTMP

Interoperability
ONVIF (Profile S/Profile G); CGI; P2P

User/Host
6 (Total bandwidth: 36 M)

Storage

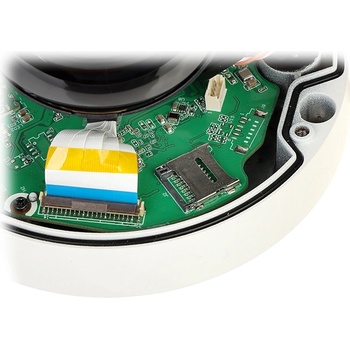

Micro SD card (support max. 256 GB, sold separately)

Browser
IE
Chrome
Firefox

Management Software
Smart PSS; DSS; DMSS

Mobile Client
iOS; Android

Power
Power Supply
12 VDC

Power Consumption
Basic: 2 W (12 VDC);
Max. (H. 265+IR intensity): 4.9 W (12 VDC)

Environment
Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity
≤95%

Storage Temperature
–30 °C to +60 °C (–22 °F to +140 °F)

Protection
IP67; IK10
