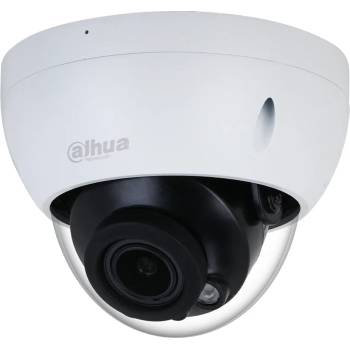

Dahua IPC-HDBW2841R-ZAS

Dahua IPC-HDBW2841R-ZAS-27135



SPECIFICATION

Standard: TCP/IPSensor: 1/2.8 " Progressive Scan CMOSMatrix size: 8.3 Mpx 4K UHDResolution: 3840 x 2160  - 8.3 Mpx 4K UHD ,
3072 x 2048  - 6.3 Mpx ,
3072 x 1728  - 5.3 Mpx ,
2880 x 1620  - 4.7 Mpx ,
2688 x 1520  - 4 Mpx ,
2048 x 1536  - 3.1 Mpx ,
2304 x 1296  - 3 Mpx ,
1920 x 1080  - 1080p ,
1280 x 960  - 1.3 Mpx ,
1280 x 720  - 720pLens: 2.7  ... 13.5 mm - MotozoomView angle:

• 113 ° ... 31 ° (manufacturer data)
• 78 ° ... 24 ° (our tests result)

Range of IR illumination: 40 mRS-485 interface: NoImage compression method: H. 265 / H. 264H / H. 264B / H. 264 / MJPEGMemory card slot: Micro SD memory cards up to 256GB support (possible local recording)Alarm inputs / outputs: 1 / 1 Audio:

• Microphone built-in,
• External microphone input
• Audio output
• Bi-directional audio streaming support
• Audio detection
• Compliance with the AAC standard

Network interface: 10/100 Base-T (RJ-45)Network protocols: IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, BonjourWEB Server: Built-inMax. number of on-line users: 20 ONVIF: 21.12 Main stream frame rate: 20 fps @ 8.3 Mpx
25 fps @ 4.7 MpxMobile phones support:

Port no. : 37777 or access by a cloud (P2P)

• Android: Free application DMSS
• iOS (iPhone): Free application DMSS

Default IP address: 192.168. 1.108 Default admin user / password: admin / -
The administrator password should be set at the first startWeb browser access ports: 80, 37777 PC client access ports: 37777 Mobile client access ports: 37777 Port ONVIF: 80 RTSP URL: rtsp://admin:hasł[email protected]. 1.108:554/cam/realmonitor?channel=1&subt ype=0 - Main stream
rtsp://admin:hasł[email protected]. 1.108:554/cam/realmonitor?channel=1&subt ype=1 - Sub streamMain features:

• Motozoom lens
• WDR - 120 dB - Wide Dynamic Range
• 3D-DNR - Digital Noise Reduction
• ROI - improve the quality of selected parts of image
• BLC/HLC - Back Light / High Light Compensation
• Possibility to change the resolution, quality and bit rate
• Motion Detection
• Configurable Privacy Zones
• Day/night mode
• ICR - Movable InfraRed filter
• Auto White Balance
• AGC - Automatic Gain Control
• Image rotation and mirror
• NAS - Network Attached Storage support
• SMD PLUS - searching for an object classified as: human, motor vehicle, non-motor vehicle
• IVS analysis : crossing the line (tripwire), intrusion - classification of people and vehicles, Audio detection

Power supply:

• PoE (802.3af),
• 12 V DC / 530 mA

Power consumption:

• ≤ 7.3 W @ PoE
• ≤ 6.4 W @ 12 V

Housing: Dome - MetalColor: White"Index of Protection": IP67Vandal-proof: IK10Operation temp: -30 °C ... 60 °CWeight: 0.51 kgDimensions: Ø 122  x 93 mm
