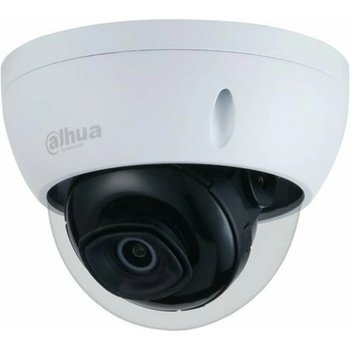

Dahua IPC-HDBW3241EP-AS-0360B

Dahua IPC-HDBW3241EP-AS-0360B

CameraImage Sensor 1/2.8 2Megapixel progressive CMOSMax. Resolution 1920 (H) ×1080 (V)ROM 128 MBRAM 256 MBScanning System ProgressiveElectronic Shutter Speed Auto/Manual 1/3 s–1/100000 sMin. Illumination 0.002 [email protected] 0 Lux IR ONS/N Ratio > 56 dBIllumination Distance 50 m (164.0 ft)Illuminator On/Off Control Auto/ManualIlluminator Number 3 (IR LED)Pan/Tilt/Rotation Range Pan: 0°–355°; Tilt: 0°–65°; Rotation: 0°–355°LensLens Type Fixed-focalMount Type M12Focal Length 3.6 mmMax. Aperture F1.6Field of View 3.6 mm: Horizontal:87°; vertical: 46° ; diagonal: 104°Iris Type FixedClose Focus Distance 3.6 mm: 1.2 m (3.9 ft)DORI Distance Lens Detect Observe Recognize Identify3.6mm

55.2 m

(181.1 ft)

22.1 m

(72.5 ft)

11.0 m

(36.1 ft)

5.5 m

(18.0 ft)

Professional, IntelligentPerimeter Protection Tripwire; intrusion (Recognition of human and vehicle)Intelligent Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videosVideoVideo Compression

H. 265; H. 264; H. 264H; H. 264B; MJPEG(only supported

by sub stream)

Smart Codec Smart H. 265+/ Smart H. 264+Video Frame Rate Main stream (1920 × 1080@1–25/30 fps)
sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps)
third stream (1280 × 720@1–25/30 fps)Stream Capability 3 streamsResolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)Bit Rate Control CBR/VBRVideo Bit Rate H. 264: 3 Kbps–8192 Kbps
H. 265: 3 Kbps–8192 KbpsDay/Night Auto(ICR)/Color/B/WBLC YesHLC YesWDR 120 dBWhite Balance Auto/natural/street lamp/outdoor/manual/regional customGain Control Auto/ManualNoise Reduction 3D DNRMotion Detection OFF/ON (4 areas, rectangular)Region of Interest(RoI) Yes (4 areas)Smart Illumination YesImage Rotation 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower. )Mirror YesPrivacy Masking 4 areasAudioAudio Compression G. 711a; G. 711Mu; G726; AACAlarmAlarm Event No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; input abnormal; intensity change; tripwire; intrusion; SMDNetworkNetwork RJ-45 (10/100 Base-Tx) SDK and API YesProtocol

IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP; RTSP;RTCP;

RTMP;SMTP;FTP;SFTP;DHCP ;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IG MP;NFS;PPPoE;802.1x;SNMP

Interoperabi lity ONVIF(Profile S/Profile G);CGI;P2P;Milestone;GenetecScene Self-adaptation YesUser/Host 20 (Total bandwidth: 64 M)Storage FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS; microSDHC and microSDXCBrowser

IE: IE8, IE9, IE11

Chrome

Firefox

Manag ement Software Smart PSS, DSS, DMSSMobile Phone IOS; AndroidCertificationCertifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No. 60950-1-07PortAudio Input 1-channel (RCA port)Audio Output 1-channel (RCA port)Alarm Input 1 channel in: 5mA 3V–5V DCAlarm Output 1 channel out: 300mA 12V DCPowerPower Supply 12V DC/PoE (802.3af)Power Consumption
