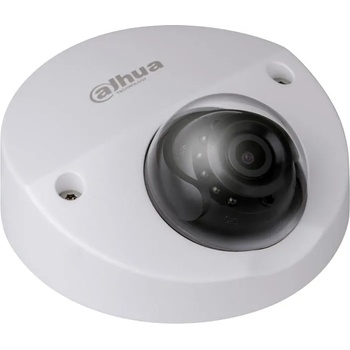

Dahua IPC-HDBW4431F-AS

Dahua IPC-HDBW4431F-AS-0280B

1/3 4Megapixel progressive scan CMOS
H. 265&H. 264 dual-stream encoding
25/30fps@4M(2688×1520)
Smart Detection supported
WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC,
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
3.6mm fixed lens (2.8mm, 6mm optional)
Max. IR LEDs Length 20m
Micro SD memory, IP67, IK10, PoE

Technical Specification:

Camera:

Image Sensor- 1/3 4Megapixel progressive scan CMOS

Effective Pixels- 2688(H)x1520(V)

RAM/ROM- 512MB/32MB

Scanning System- Progressive

Minimum Illumination- 0.08Lux/F2.0 (Color), 0Lux/F2.0 (IR on)

S/N Ratio- More than 50dB

IR Distance- Distance up to 20m (65.6ft)

IR On/Off Control- Auto/ Manual

IR LEDs- 10

Lens:

Lens Type- Fixed

Mount Type- Board-in

Focal Length- 3.6mm (2.8mm, 6mm optional)

Max. Aperture- F2.0 (F2.0, F2.0)

Angle of View- H: 87° (104°, 55°), V: 48° (57°, 31°)

Optical Zoom- N/A

Focus Control- Fixed

Close Focus Distance- N/A

Pan/Tilt/Rotation:
Pan/Tilt/Rotation Range- Pan:0 ̊~60 ̊; Tilt:0 ̊~80 ̊; Rotation:0 ̊~360 ̊

Intelligence:
IVS (optional)- Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions- Face Detection

Video:
Compression- H. 265+/H. 265/H. 264+/H. 264
Streaming Capability- 3 Streams

Resolution:
4M(2688×1520)/3M(2304×1296)/
1080P(1920×1080)/1.3M(1280x960)/
720P(1280×720)/D1(704×576/704×480 )/
VGA(640×480)/CIF(352×288/352×240)

Frame Rate:
Main Stream: 4M(1~25/30fps)
Sub Stream: D1(1~25/30fps)
Third Stream: 720P(1~25/30fps)

Bit Rate Control- CBR/VBR

Bit Rate:
H. 264: 24~10240Kbps
H. 265: 14~9984Kbps

Day/Night- Auto(ICR) / Color / B/W

BLC Mode- BLC / HLC / WDR(120dB)

White Balance- Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control- Auto/Manual

Noise Reduction- 3D DNR

Motion Detetion- Off / On (4 Zone, Rectangle)

Region of Interest- Off / On (4 Zone)

Electronic Image Stabilization (EIS)- N/A

Smart IR- Support

Defog- N/A

Digital Zoom- 16x

Flip- 0°/90°/180°/270°

Mirror- Off / On

Privacy Masking- Off / On (4 Area, Rectangle)

Audio
Compression- G. 711a/ G. 711Mu/ AAC/ G. 726

Network:
Ethernet- RJ-45 (10/100Base-T)

Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;
UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;
IGMP; SNMP

Interoperability- ONVIF, PSIA, CGI

Streaming Method- Unicast / Multicast

Max. User Access- 10 Users /20 Users

Edge Storage:
NAS
Local PC for instant recording
Mirco SD card 128GB

Web Viewer- IE, Chrome, Firefox, Safari

Management Software- Smart PSS, DSS, Easy4ip

Smart Phone- IOS, Android

Certifications:
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B

Interface:
Video Interface- N/A
Audio Interface- Built-in Mic
RS485- N/A
Alarm- N/A

Electrical:
Power Supply- DC12V, PoE (802.3af)(Class 0)

Power Consumption-
