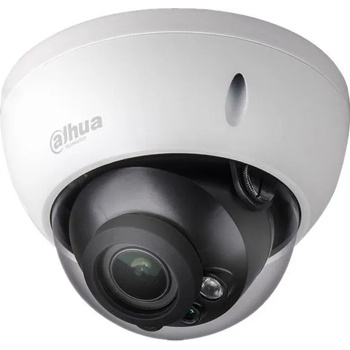

Dahua IPC-HDBW5631R-ZE

Dahua IPC-HDBW5631R-ZE

6MP WDR IR Dome Network Camera
> 1/2.9 6Megapixel progressive scan STARVIS CMOS
> H. 265&H. 264 dual-stream encoding
> 20fps@6M(30722048), 25/30fps@4M(26881520)
> Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2.7mm ~13.5mm motorized lens
> Max. IR LEDs Length 50m
> Micro SD card memory, IP67, IK10, PoE

Camera:

Image Sensor- 1/2.9 6Megapixel progressive scan CMOS

Effective Pixels- 3072(H)x2048(V)

RAM/ROM- 512MB/32MB

Scanning System- Progressive

Electronic Shutter Speed- Auto/Manual, 1/3~1/100000s

Minimum Illumination
0.03Lux/F1.4 (Color, 1/3s, 30IRE)
0.3Lux/F1.4 (Color, 1/30s, 30IRE)
0Lux/F1.4(IR on)

S/N Ratio- More than 50dB

IR Distance- Distance up to 50m (164ft)

IR On/Off Control- Auto/ Manual

IR LEDs- 2

Lens

Lens Type- Motorized/ Auto Iris(DC)

Mount Type- Board-in

Focal Length- 2.7mm~13.5mm

Max. Aperture- F1.4

Angle of View- H:91~27 , V:58~18

Optical Zoom- 5x

Focus Control- Motorized

Close Focus Distance- 0.3m

DORI Distance:
Lens:
W:
Detect- 79m(259ft)
Observe- 32m(105ft)
Recognize- 16m(52ft)
Identify- 8m(41ft)

T:
Detect- 256m(840ft)
Observe- 102m(334ft)
Recognize- 51m(167ft)
Identify- 25m(84ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range- Pan:0~355; Tilt:0~75; Rotation:0~355

Intelligence

IVS- Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions- Face Detection

Video

Compression- H. 265+/H. 265/H. 264+/H. 264

Streaming Capability- 3 Streams

Resolution:
6M(30722048)/5M(3072x1728)/ 5M(25921944)/ 4M(26881520)/ 3M(2048x1536)/ 3M(23041296)/ 1080P(19201080)/1.3M(1280x960)/ 720P(1280720)/ D1(704576/704480)/
VGA(640480)/ CIF(352288/352240)

Frame Rate:
Main Stream: 6M(1~20fps)/4M(1~25/30fps)
Sub Stream: D1(1~25/30fps)
Third Stream: 720P(1~25/30fps)

Bit Rate Control- CBR/VBR

Bit Rate- H. 264: 24K ~ 10240Kbps H. 265: 14K ~ 9984Kbps

Day/Night- Auto(ICR) / Color / B/W

BLC Mode- BLC / HLC / WDR

White Balance- Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control- Auto/Manual

Noise Reduction- 3D DNR

Motion Detetion- Off / On (4 Zone, Rectangle)

Region of Interest- Off / On (4 Zone)

Electronic Image Stabilization (EIS)- N/A

Smart IR- Support

Defog- N/A

Digital Zoom- 16x

Flip- 0/90/180/270

Mirror- Off / On

Privacy Masking- Off / On (4 Area, Rectangle)

Audio:

Compression- G. 711a/ G. 711Mu/ AAC/ G. 726

Network

Ethernet- RJ-45 (10/100Base-T)

Protocol
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP

Interoperability- ONVIF, PSIA, CGI

Streaming Method- Unicast / Multicast

Max. User Access- 10 Users /20 Users

Edge Storage
NAS
Local PC for instant recording
Mirco SD card 128GB

Web Viewer- IE, Chrome, Firefox, Safari

Management Software- Smart PSS, DSS, Easy4ip

Smart Phone- IOS, Android

Certifications:

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface:

Video Interface- N/A

Audio Interface- 1/1 channel In/Out

RS485- N/A

Alarm:
1 channel In: 5mA 5VDC
1 channel Out: 300mA 12VDC

Electrical

Power Supply- DC12V, PoE(802.3af)(Class 0)

Power Consumption-
