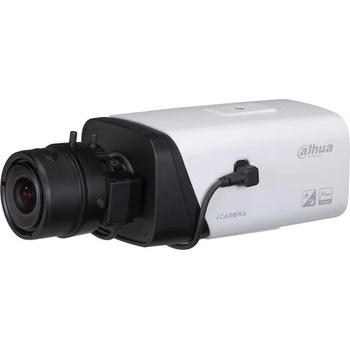

Dahua IPC-HF5231E-E

IPC-HF5231E-E

2MP WDR Box Network Camera
> 1/2.8 2Megapixel progressive scan STARVIS CMOS
> H. 264&H. 265 triple-stream encoding
> 50/60fps@1080P(1920×1080)
> Smart Detection supported
> WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 2/1 Alarm in/out, 1/1 audio in/out(Built-in Mic)
> Auto back focus(ABF)
> Micro SD memory, PoE

Camera:

Image Sensor- 1/2.8 2Megapixel progressive scan CMOS

Effective Pixels- 1920(H) x 1080(V)

RAM/ROM- 256MB/32MB

Scanning System- Progressive

Electronic Shutter Speed- Auto/Manual, 1/3~1/100000s

Minimum Illumination:
- 0.004Lux/F1.2(Color, 1/3s, 30IRE)
- 0.04Lux/F1.2(Color, 1/30s, 30IRE)
- 0.002Lux/F1.2(B/W, 1/3s, 30IRE)
- 0.02Lux/F1.2(B/W, 1/30s, 30IRE)

S/N Ratio- More than 50dB

IR Distance- N/A

IR On/Off Control- N/A

IR LEDs- N/A

Lens :

Lens Type- N/A

Mount Type- C/CS

Focal Length- N/A

Max. Aperture- N/A

Angle of View- N/A

Optical Zoom- N/A

Focus Control- N/A

Close Focus Distance- N/A

Pan/Tilt/Rotation:

Pan/Tilt/Rotation Range- N/A

Intelligence:

IVS- Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions- Face Detection

Video:

Compression- H. 265+/H. 265/H. 264+/H. 264

Streaming Capability- 3 Streams

Resolution:
- 1080P(1920x1080)/1.3M(1280x960)/

- 720P(1280×720)/D1(704×576/704×480)/

- VGA(640×480)/CIF(352×288/352×240)

Frame Rate:
- Main Stream: 1080P(1~50/60fps)
- Sub Stream:D1(1~50/60fps)
- Third Stream: 1080P(1~25/30fps)

Bit Rate Control- CBR/VBR

Bit Rate:
- H. 264: 24~9472Kbps
- H. 265: 14~5632Kbps

Day/Night- Auto(ICR) / Color / B/W

BLC Mode- BLC / HLC / WDR(120dB)

White Balance- Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control- Auto/Manual

Noise Reduction- 3D DNR

Motion Detetion- Off / On (4 Zone, Rectangle)

Region of Interest- Off / On (4 Zone)

Electronic Image Stabilization (EIS)- N/A

Smart IR- N/A

Defog- N/A

Digital Zoom- 16x

Flip- 0°/90°/180°/270°

Mirror- Off / On

Privacy Masking- Off / On (4 Area, Rectangle)

Audio:

Compression- G. 711a/ G. 711Mu/ AAC/ G. 726

Network:

Ethernet- RJ-45 (10/100Base-T)

Protocol:
- HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
- FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;
- UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;
- IGMP; SNMP

Interoperability- ONVIF, PSIA, CGI

Streaming Method- Unicast / Multicast

Max. User Access- 10 Users /20 Users

Edge Storage:
- NAS

- Local PC for instant recording

- Mirco SD card 128GB

Web Viewer- IE, Chrome, Firefox, Safari

Management Software- Smart PSS, DSS, Easy4ip

Smart Phone- IOS, Android

Certifications:
- CE (EN 60950:2000)

- UL:UL60950-1

- FCC: FCC Part 15 Subpart B

Interface:

Video Interface- 1 port(BNC, 1Vp-p, 75)

Audio Interface- 1/1 channel In/Out, 1 Built-in Mic

RS485- 1 port

Alarm:
- 2 channel In: 5mA 5VDC
- 1 channel Out: 300mA 12VDC

Electrical:
Power Supply- DC12V, AC24V, PoE(802.3af)(Class 0)

Power Consumption-
