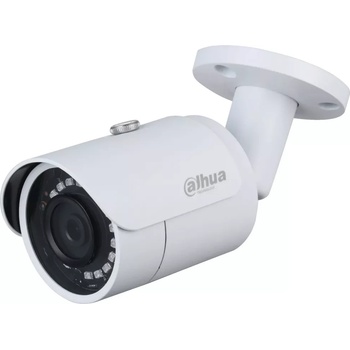

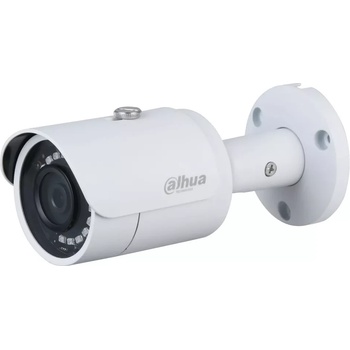

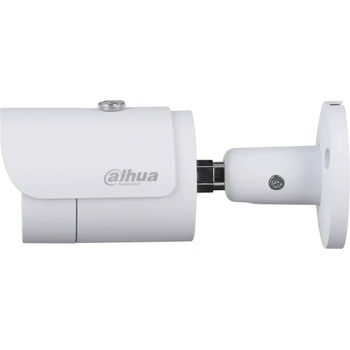

Dahua IPC-HFW1230S-0280B-S4

DH-IPC-HFW1230S-S52MP Entry IR Fixed-Focal Bullet Netwok Camera

- 2MP, 1/2.8 CMOS image sensor, low illuminance, high image definition
- Outputs max. 2MP (1920 × 1080) @25/30 fps
- H. 265 codec, high compression rate, ultra-low bit rate
- Built-in efficient IR illuminator, and the max. illumination distance is 30 m
- ROI, SMART H. 264+/H. 265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access
- 12V DC/PoE power supply
- IP67 protection

Technical Specification

Camera

Image Sensor: 1/2.8" CMOS
Max. Resolution: 1920 (H) × 1080 (V)
ROM: 16 MB
RAM: 64 MB
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100000 s
Min. Illumination: 0.01 Lux @F2.0
S/N Ratio: >56 dB
Illumination Distance: 30 m (98.4 ft)
Illuminator On/Off Contro:l Auto/Manual
Illuminator Numbe:r 18 (IR LED)

Pan/Tilt/Rotation Range
Pan: 0° to 360°
Tilt: 0° to 90°
Rotation: 0° to 360°

Lens

Lens Type: Fixed-focal
Lens Mount: M12
Focal Length 2.8 mm
Max. Aperture: 2.8 mm: F2.0
Field of View: 2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal: 120°
Iris Control: Fixed
Close Focus Distance: 2.8 mm: 0.5 m (1.6 ft)

DORI Distance

Lens: 2.8 mm
Detect: 38.6 m (126.6 ft)
Observe: 15.4 m (50.5 ft)
Recognize: 7.7 m (25.3 ft)
Identify: 3.9 m (12.8 ft)

Video

Video Compression: H. 265; H. 264; H. 264B; MJPEG (only supported by the
sub stream)
Smart Codec: Smart H. 265+/Smart H. 264+

Video Frame Rate

Main Stream:
1920 × 1080 (1 fps–25/30 fps)

Sub stream:
704 × 576 (1 fps–25 fps)
704 × 480 (1 fps–30 fps)

Stream Capability: 2 streams

Resolution

1080p (1920 × 1080); 1.3M(1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF
(352 × 288/352 × 240)
Bit Rate Control: CBR/VBR

Video Bit Rate
H. 264: 32 kbps–6144 kbps
H. 265: 12 kbps–6400 kbps

Day/Night: Auto (ICR)/Color/B/W
BLC: Yes
HLC: Yes
WDR: DWDR
White Balance: Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control: Auto/Manual
Noise Reduction: 3D NR
Motion Detection: OFF/ON (4 areas, rectangular)
Region of Interest (RoI): Yes (4 areas)
Smart Illumination: Yes
Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
Mirror: Yes
Privacy: Masking 4 area

Alarm Event Network disconnection; IP conflict; illegal access; motion
detection; video tampering; safety exception

Network

Network: RJ-45 (10/100 Base-T)
SDK and API: Yes

Cyber Security
Video encryption;configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X. 509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade

Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast
Interoperability: ONVIF (Profile S/Profile T); CGI; P2P; Genetec
User/Host: 6 (Total bandwidth: 36 M)
Storage: FTP

Browser
IE
Chrome
Firefox

Management Software: Smart PSS; DSS; DMSS
Mobile Client: IOS; Android

Certification

Certifications
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Power

Power Supply 12V DC/PoE (802.3af)
Power Consumption
Basic power consumption: 1.5W (12V DC); 2.3W (PoE)
Max. power consumption (ICR + H. 265+IR intensity):
4.3W (12V DC); 5.5W (PoE)
