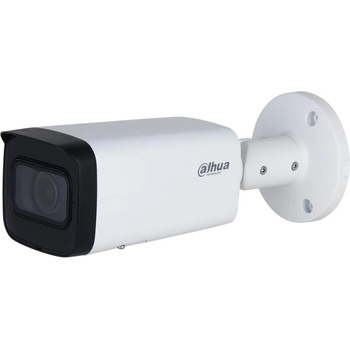

Dahua IPC-HFW2241T-ZAS-27135

P camera with efficient H. 264 / H. 265 image compression algorithm for clear and smooth video streaming at maximal resolution of 1080p. Due to above it is perfect solution for surveillance systems requiring persons or vehicles recognition.



The used motozoom lens with 2.7 ... 13.5 mm focal length allows to remote view angle adjustment. Thanks to the "Starlight" technology used, the camera only needs very low lighting to obtain a clear color image. PoE powering possibility, compatible with the 802.3af standard makes the device more universal and easier to install.

Camera is according to IP67 Index of Protection norm.



SPECIFICATIONS:< /strong>

Standard: TCP/IPSensor: 1/2.8 " Progressive Scan CMOSMatrix size: 2.1 MpxResolution: 1920 x 1080  - 1080p ,
1280 x 960  - 1.3 Mpx ,
1280 x 720  - 720pLens: 2.7  ... 13.5 mm - MotozoomView angle:

• 108 ° ... 30 ° (manufacturer data)
• 104 ° ... 31 ° (our tests result)

Compression: H. 265+ / H. 265 / H. 264+ / H. 264 / MJPEGRange of IR illumination: 60 mAlarm inputs / outputs: 1 / 1 Main stream frame rate: 25 fps - 1080pNetwork interface: 10/100 Base-T (RJ-45)Network protocols: IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, Multicast, ICMP, IGMPAudio:

• Microphone built-in
• External microphone input
• Audio output
• Bi-directional audio streaming support
• Audio detection

WEB Server: Built-inMemory card slot: Micro SD memory cards up to 256GB support (possible local recording)Max. number of on-line users: 6 ONVIF: 21.06 Mobile phones support:

Port no. : 37777 or access by a cloud (P2P)

• Android: Free application DMSS
• iOS (iPhone): Free application DMSS

Default admin user / password: admin / -
The administrator password should be set at the first startDefault IP address: 192.168. 1.108 Web browser access ports: 80, 37777 PC client access ports: 37777 Mobile client access ports: 37777 Port ONVIF: 80 RTSP URL: rtsp://admin:hasł[email protected]. 1.108:554/cam/realmonitor?channel=1&subt ype=0 - Main stream
rtsp://admin:hasł[email protected]. 1.108:554/cam/realmonitor?channel=1&subt ype=1 - Sub streamRS-485 interface: НеMain features:

• WDR - 120 dB - Wide Dynamic Range
• 3D-DNR - Digital Noise Reduction
• ROI - improve the quality of selected parts of image
• BLC - Back Light Compensation
• HLC - High Light Compensation (spot)
• ICR - Movable InfraRed filter
• AGC - Automatic Gain Control
• Motion Detection - max. 4 zones
• Privacy zones - max. 4
• Auto White Balance
• Mirror - Mirror image
• SMD PLUS - searching for an object classified as: human, motor vehicle, non-motor vehicle
• IVS analysis : crossing the line (tripwire), intrusion, Smart motion detection (with recognizing people and vehicles)

Power supply:

• PoE (802.3af),
• 12 V DC / 710 mA

Power consumption:

• ≤ 8.6 W @ 12 V DC
• ≤ 9.9 W @ PoE

Housing: Compact, MetalColor: White"Index of Protection": IP67Operation temp: -30 °C ... 60 °CSupported languages: Polish, English, Czech, French, Spanish, Dutch, German, Portuguese, Russian, Romanian, Turkish, Ukrainian, Hungarian, ItalianWeight: 0.77 kgDimensions: 239  x 91  x 91 mm
