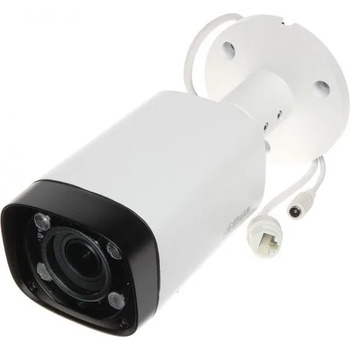

Dahua IPC-HFW2431R-ZS-IRE6

Dahua IPC-HFW2431R-ZS-IRE6

4MP WDR IR Bullet Network Camera
> 1/3 4Megapixel progressive CMOS
> H. 264+ & H. 264 dual-stream encoding
> 20fps@4M(2688x1520) & 25/30fps@3M (23041296)
> WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> Micro SD card slot, up to 128GB
> 2.7~12mm varifocal lens
> Max IR LEDs Length 60m
> IP67, PoE

Camera

Image Sensor- 1/3 4Megapixel progressive CMOS

Effective Pixels- 2688(H) x1520(V)

RAM/ROM- 256M/16M

Scanning System- Progressive

Electronic Shutter Speed- Auto/Manual, 1/3(4)~1/100000s

Minimum Illumination- 0.1Lux/F1.4(Color), 0Lux/F1.4(IR on)

S/N Ratio- More than 50dB

IR Distance- Distance up to 60m(197ft)

IR On/Off Control- Auto/ Manual

IR LEDs- 4

Lens:

Lens Type- Motorized(-ZS)

Mount Type- Board-in

Focal Length- 2.7mm~12mm

Max. Aperture- F1.4

Angle of View- H:100~35, V:54~20

Focus Control- Auto (-ZS), Fixed(-VFS)

Close Focus Distance- 0.3m

DORI Distance:
Lens:
W:
Detect- 68m(223ft)
Observe- 27m(89ft)
Recognize- 14m(49ft)
Identify- 7m(23ft)

T:
Detect- 193m(633ft)
Observe- 77m(253ft)
Recognize- 39m(128ft)
Identify- 19m(62ft)

PTZ:
Pan/Tilt Range- Pan:0 ~360 ;Tilt:0 ~90 ;Rotation:0 ~360

Video:
Compression- H. 264+/H. 264

Streaming Capability- 2 Streams

Resolution:
4M(26881520)/3M(23041296)/
1080P(1920x1080)/1.3M(1280x960)/ 720P(1280720)/D1(704576/704480) /
CIF(352288/352240)

Frame Rate:
4M(1~20fps)/3M(1~25/30fps)
D1/CIF(1 ~ 25/30fps)

Bit Rate Control- CBR/VBR

Bit Rate- H264:24K ~ 8192Kbps

Day/Night- Auto(ICR) / Color / B/W

BLC Mode- BLC / HLC / WDR(120dB)

White Balance- Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control- Auto/Manual

Noise Reduction- 3D DNR

Motion Detetion- Off / On (4 Zone, Rectangle)

Region of Interest- Off / On (4 Zone)

Electronic Image Stabilization(EIS)- N/A

Smart IR- Support

Digital Zoom- 16x

Flip- 0/90/180/270

Mirror- Off / On

Privacy Masking- Off / On (4 Area, Rectangle)

Audio:
Compression- N/A

Network:
Ethernet- RJ-45 (10/100Base-T)

Protocol:
HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP ;FTP;
DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP ;NTP;
Bonjour;802.1x;Multicast;ICMP;IGMP;

Interoperability- ONVIF, PSIA, CGI

Streaming Method- Unicast / Multicast

Max. User Access- 10 Users/20 Users

Edge Storage:
NAS(Network Attached Storage)
Local PC for instant recording
Micro SD Card 128GB

Web Viewer- IE, Chrome, Firefox, Safari

Management Software- Smart PSS, DSS, Easy4ip

Smart Phone- IOS, Android

Certifications:
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B

Interface:
Video Interface- N/A

Audio Interface- N/A

RS485- N/A

Alarm- N/A

Electrical:
Power Supply- DC12V PoE (802.3af)(Class 0)

Power Consumption-
