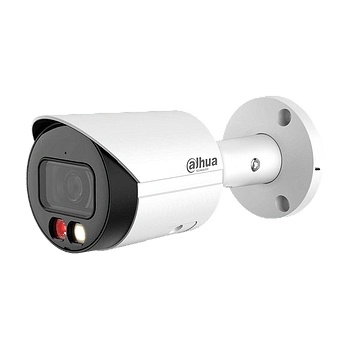

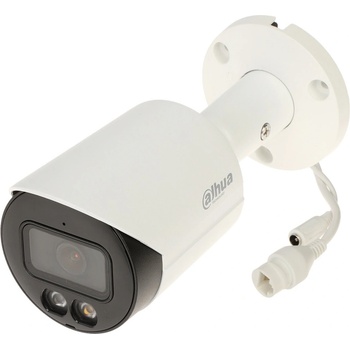

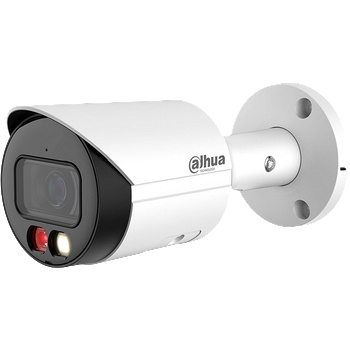

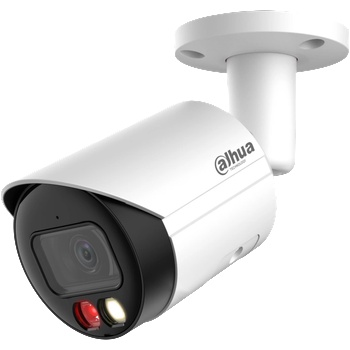

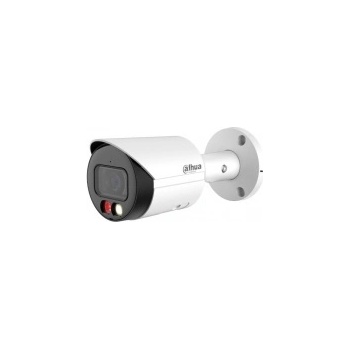

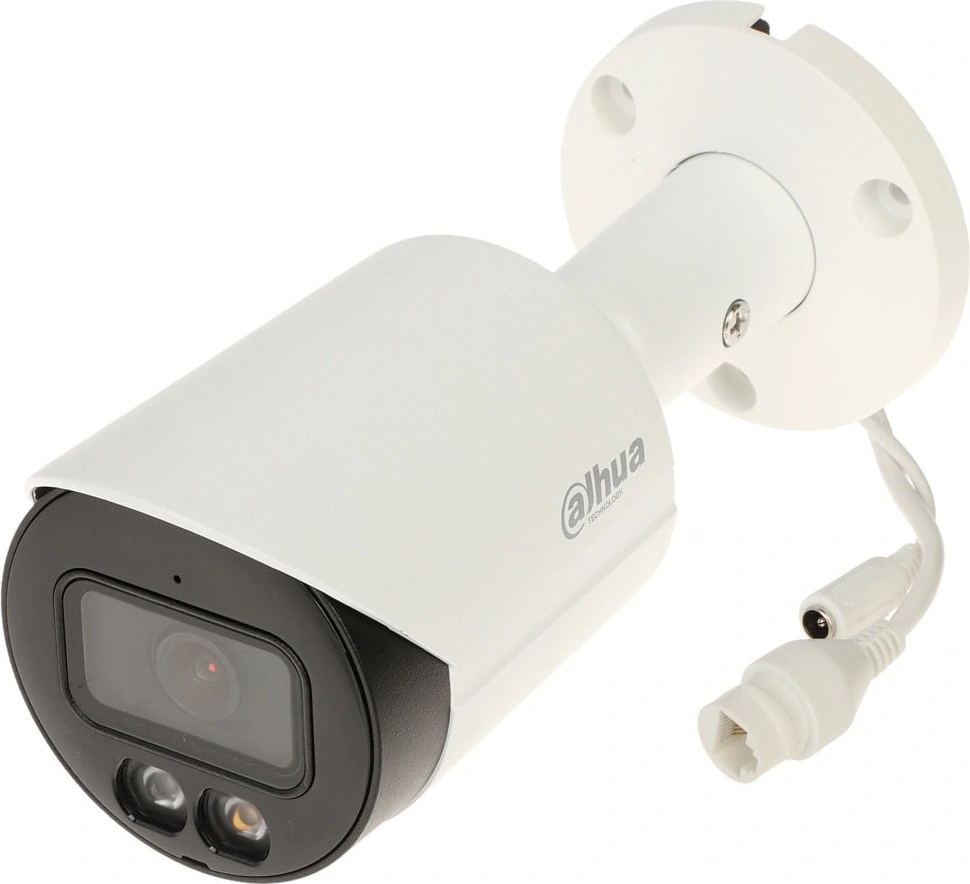

Dahua IPC-HFW2549S-S-IL-0360B

Dahua IPC-HFW2549S-S-IL-0360B



SPECIFICATION

Standar d: TCP/IPSensor: 1/2.7 " Progressive Scan CMOSMatrix size: 5 MpxResolution: 2960 x 1668  - 5 Mpx ,
2880 x 1620  - 4.6 Mpx ,
2688 x 1520  - 4 Mpx ,
2048 x 1536  - 3 Mpx ,
2304 x 1296  - 3 Mpx ,
1920 x 1080  - 1080p ,
1280 x 960  - 1.3 Mpx ,
1280 x 720  - 720pScanning system: ProgressiveLens: 3.6 mmView angle:

• 92 ° (manufacturer data)
• 88 ° (our tests result)

Range of IR illumination: 30 mWhite light LED illuminator range: 30 mMin. illumination: 0.007 Lux / F1.0 (color)RS-485 interface: NoMemory card slot: Micro SD memory cards up to 256GB support (possible local recording)Image compression method: H. 265+ / H. 265 / H. 264+ / H. 264 / MJPEGAlarm inputs / outputs: NoAudio:

• Microphone built-in
• Audio transmission via network
• Audio detection
• Compliance with the AAC standard

Main stream frame rate: 20 fps @ 5 Mpx
25 fps @ 4 MpxNetwork interface: 10/100 Base-T (RJ-45)Network protocols: IPv4/IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, BonjourWEB Server: Built-inMax. number of on-line users: 20 ONVIF: 21.12 Mobile phones support:

Port no. : 37777 or access by a cloud (P2P)

• Android: Free application DMSS
• iOS (iPhone): Free application DMSS

Default IP address: 192.168. 1.108 Default admin user / password: admin / -
The administrator password should be set at the first startWeb browser access ports: 80, 37777 PC client access ports: 37777 Mobile client access ports: 37777 Port ONVIF: 80 RTSP URL: rtsp://admin:hasł[email protected]. 1.108:554/cam/realmonitor?channel=1&subt ype=0 - Main stream
rtsp://admin:hasł[email protected]. 1.108:554/cam/realmonitor?channel=1&subt ype=1 - Sub streamMain features:

• WDR - 120 dB - Wide Dynamic Range
• 3D-DNR - Digital Noise Reduction
• ROI - improve the quality of selected parts of image
• BLC/HLC - Back Light / High Light Compensation
• Possibility to change the resolution, quality and bit rate
• Motion Detection
• Configurable Privacy Zones
• Mirror - Mirror image
• SMD PLUS - searching for an object classified as: human, motor vehicle
• IVS analysis : intrusion, crossing the line (tripwire) - classification of people and vehicles video tampering

Power supply:

• PoE (802.3af),
• 12 V DC / 380 mA

Power consumption:

• ≤ 4.6 W @ 12 V DC
• ≤ 5.5 W @ PoE

Housing: Compact - MetalColor: White + Black"Index of Protection": IP67Vandal-proof: NoOperation temp: -40 °C ... 60 °CWeight: 0.47 kgDimensions: 166  x 70  x 70 mm
