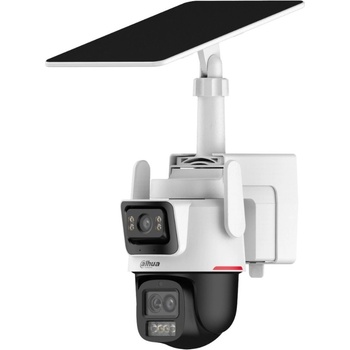

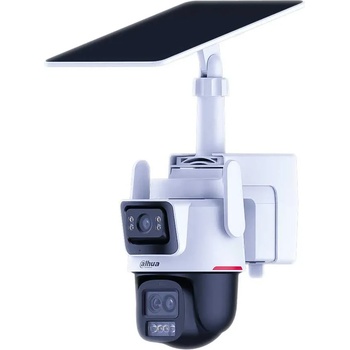

Dahua IPC-PTS2649C-3E3Z-4GB20-3684/0280B-PRO

IPC-PTS2649C-3E3Z-4GB20



3+3MP WizColor Hybrid-zoom PT 4G Solar Power Network Camera

> Displays videos in two channels at the same time

> 1/2.8" 3Megapixel CMOS

> WizColor technology

> 6x hybrid zoom

> Two-way talk

> SMD3.0

> Siren and Light Active Deterrence

> Auto Tracking Lite

> Supports AOV mode

> 4G Connection

> Built-in 65Wh high-capacity ternary lithium battery

> Supports Type-C power supply

> Supports manual adjustment of fixed lens (Vertical: -7° to 20°)

> IP66

Category Parameter SpecificationCa mera Image Sensor Fixed Lens: 1/2.8" CMOS; PT Lens: 1/2.8" CMOS  Pixel Fixed Lens: 3 MP; PT Lens: 3 MP  Max. Resolution 2304 (H) × 1296 (V)  ROM / RAM 256 MB / 256 MB  Scanning System Progressive  Min. Illumination Fixed Lens: 0.0005 [email protected] (Color, 30 IRE); 0 lux (Illuminator on); PT Lens: same  Illumination Distance Fixed: 30 m (98.43 ft); PT: 50 m (164.04 ft)  Illuminator Control Manual; Auto; Off  Illuminator Number Fixed & PT: 4 (Warm light)Lens Focal Length Fixed: 2.8 mm; PT: 3.6 mm, 8.4 mm  Max. Aperture Fixed: F1.0; PT: F1.0 (both 3.6 mm and 8.4 mm)  Field of View Fixed: H: 93.5°, V: 51.9°, D: 110.1°; PT: 3.6 mm – H: 81.5°, V: 44.3°, D: 96.3°; 8.4 mm – H: 15.1°, V: 8.4°, D: 17.8°  Close Focus Distance Fixed: 1.1 m; PT: 3.6 mm – 1.7 m; 8.4 mm – 6 mDORI (Detect, Observe, Recognize, Identify) 2.8 mm 40 m / 15.8 m / 8 m / 4 m  3.6 mm 51.43 m / 20.31 m / 10.29 m / 5.14 m  8.4 mm 120 m / 47.4 m / 24 m / 12 mPTZ Pan/Tilt Range Fixed: Pan: 0–210°, Tilt: -7° to +20° (manual); PT: Pan: 0–350°, Tilt: 0–90° (electric)  Manual & Preset Speed Pan: 40°/s; Tilt: 40°/s  Preset / Tour 50 / 8 (32 presets/tour)  Power-off Memory YesSmart Events Human / Vehicle Detection Yes / YesIntelligence Smart Tracking Auto tracking lite, Linkage tracking  SMD SMD 3.0Active Deterrence Light Warning White light  Sound Warning 3 sounds; Volume 1–100; Play times: 1–10Video Compression Smart H. 265+  Streaming 1 stream  Resolution 3M (2304×1296); 1080p; 720p; 640×360  Frame Rate All Resolutions: 15 fps  Bit Rate Control VBR  Bit Rate 54 kbps – 1280 kbps (H. 265)  WDR DWDR (both lenses)  White Balance / Gain / Noise Reduction Auto / Auto / 3D NR  Motion Detection / Rotation Yes / 180°  S/N Ratio ≥55 dBAudio Built-in MIC / Speaker Yes / YesNetwork Carrier Network 4G  Frequency Bands (EAU/EUR) LTE-FDD: B1/3/5/7/8/20/28; LTE-TDD: B38/40/41  Frequency Bands (LA) LTE-FDD: B2/3/4/5/7/8/28/66; LTE-TDD: B38/40/41  Max. Transmission Power 23 dBm ± 2.7 dB (Class 3)Storage Local Storage Micro SD card up to 512 GB  Software / App DMSS / Android, iOSCertification Compliance CE: EN 55032/55035/50130-4/61000-3/62368-1/3014 89Ports Audio Input / Output 1 ch (mic) / 1 ch (speaker)  Alarm Linkage / Events Light, Audio / Motion, Human, Vehicle DetectionPower Power Supply Built-in 65Wh lithium battery + 8W solar panel  Charging Method USB Type-C (QC2.0 supported)  Power Consumption Modes 40 mW (Keep-alive); 170 mW (AOV); 2.4 W (Performance 1); 3.7 W (Performance 2); Max 8.0 W  Power Adapter Optional  Battery Capacity 65 WhEnvironment Operating Temp (Device) –20°C to +60°C  Charging Temp (Battery) –10°C to +50°C (charging starts at ≥0°C)  Discharging Temp (Battery) –20°C to +60°C  Humidity ≤95%  Protection IP66; TVS 2000 V lightning/surge/voltage transient protectionStructure Dimensions (L × W × H) 223.2 × 130.0 × 215.0 mm (8.79" × 5.12" × 8.46")  Net / Gross Weight 1.8 kg / 2.5 kg
