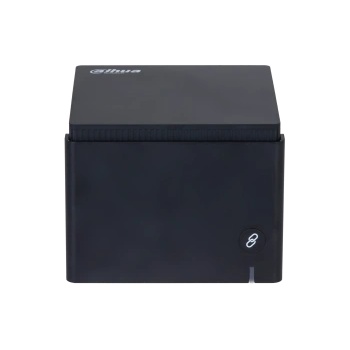

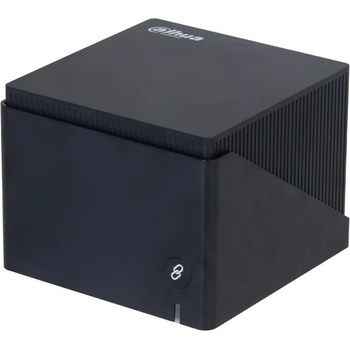

Dahua MAX18 AX1800 (1-Pack)

Dahua MAX18



Mesh Wireless Router

> Offers wireless access and high bandwidth.

> 1 gigabit WAN port and 2 gigabit LAN ports.

> Easily switches between LAN and WAN.

> Supports accessing 1000 Mbps optical fiber broadband.

> Supports being managed through the WiLynk app.



Category SpecificationHa rdware  Ethernet Ports 1 × 10/100/1000 Mbps WAN port; 2 × 10/100/1000 Mbps LAN portsWireless Standard IEEE 802.11b/g/a/n/ac/axPower Supply 12 VDCIncluded Power Adapter YesReset Button 1Power Consumption ≤12 WIndicator Light 1 × status indicatorMemory 256 MBPerformance  Terminal Communication Protocol IEEE 802.3/802.3u/802.3ab @LAN; IEEE 802.11b/g/a/n/ac/ax @WLANOperating Frequency 2.400–2.483 GHz; 5.15–5.25 GHz; 5.725–5.850 GHzWireless Speed 2.4 GHz Wi-Fi: 574 Mbps; 5 GHz Wi-Fi: 1,201 MbpsAntenna 2 × built-in 2.4 GHz omnidirectional; 2 × built-in 5 GHz omnidirectionalPolarization HorizontalCross-polarization Isolation 2.4 GHz: ≤3.5 dBi; 5.8 GHz: ≤4.5 dBiAntenna Gain 2.4 GHz-1: 2.9 dBm; 2.4 GHz-2: 3.52 dBm; 5.8 GHz-1: 3.65 dBm; 5.8 GHz-2: 4.45 dBmConnected Wireless Terminals 2.4 GHz Wi-Fi: 32; 5 GHz Wi-Fi: 64WAN Port Connection Mode Static IP address; DHCP; PPPoEChannel Width 20 MHz; 40 MHz; 80 MHzGeneral Features  Management & Log Syslog; SSH; NTPFirmware Update Web/WiLynk App updateWireless Certification CE REDSecurity Mechanism IP/MAC filtering; WAP/WPA2-PSK/WPA3-PSKNetwork Protocol UDP; HTTPS; IPv6; IPv4; TCP/IP; HTTP; NTP; SSL; DHCPRouting Static routingDHCP Server Enable/disable DHCP Server; Configure address pool; Configure lease period; Assign fixed IPsNAT Port-based NAT configurationVPN L2TP; L2TP/IPsec VPNAPN APN configurationEnvironmental Oper ating Temperature –10 °C to +55 °C (14 °F to 131 °F)Storage Temperature –40 °C to +70 °C (–40 °F to 158 °F)Operating Humidity 5%–95% RH (non-condensing)Dimensions & Weight  Main Body Dimensions 94 × 94 × 72 mm (3.70 × 3.70 × 2.83 in)Product Dimensions 1-pack: 126.5 × 121.5 × 155.5 mm (4.98 × 4.78 × 6.10 in); 3-pack: 451 × 128 × 106 mm (17.76 × 5.04 × 4.17 in)Net Weight 1-pack: 0.23 kg (0.51 lb); 3-pack: 0.69 kg (1.52 lb)Gross Weight 1-pack: 0.48 kg (1.06 lb); 3-pack: 1.2 kg (2.65 lb)Protection  Statics Protection Air discharge: 8 kV; Contact discharge: 6 kVLightning Protection Common mode: 2 kV; Differential mode: 1 kV
