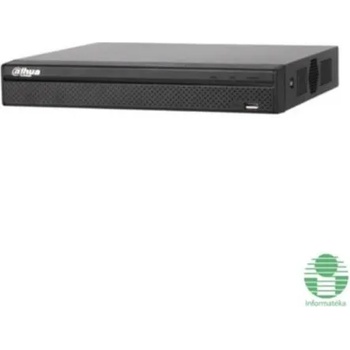

Dahua NVR2108HS-8P-4KS2

Dahua NVR2108HS-8P-4KS2

8 Channel Compact 1U 8PoE Lite 4K H. 265 Network Video Recorder
H. 265/H. 264 codec decoding
Max 80Mbps incoming bandwidth
Up to 8Mp resolution preview&playback
Up to 1ch@8MP/4ch@1080P decoding
HDMI/VGA simultaneous video output
Support IPC UPnP, 8PoE ports

System
Main Processor
Dual-core embedded processor

Operating System
Embedded LINUX

Audio and Video
IP Camera Input
8 Channel
Two-way Talk
1 Channel Input, 1 Channel Output, RCA

Display
Interface
1 HDMI, 1 VGA

Resolution
HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720
VGA: 1920×1080, 1280×1024, 1280×720

Decoding Capacity
1ch@8MP 30fps, 4ch@1080P 30fps
Multi-screen Display
1/4/8/9

OSD
Camera title, Time, Camera lock, Motion detection, Recording

Recording
Compression
H. 265/H. 264
Resolution
8MP/6MP/5MP/4MP/3MP/1080P/ 720P/ D1&etc.
Record Rate
80Mbps
Bit Rate
16Kbps ~ 20Mbps Per Channel

Record Mode
Manual, Schedule(Regular(Continuous), MD, Stop
Record Interval
1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection and Alarm
Trigger Events
Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips

Video Detection
Motion Detection, MD Zones: 396 (22 × 18),
and Tampering
Alarm input
N/A
Relay Output
N/A
Playback and Backup
Sync Playback
1/4
Search Mode
Time /Date, MD and Exact Search
(accurate to second)
Playback Function
Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom
Backup Mode
USB Device/Network

Third-party Support
Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more

Network
Interface
1 RJ-45 port (10/100/1000Mbps)
PoE
8 ports (IEEE802.3at/af)

Network Function
HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search(Support Dahua IP camera, DVR, NVS and etc. ), Easy4ip

Optical Fiber Interface
N/A
Max. User Access
128 users
Smart Phone
iPhone, iPad, Android
Interoperability
ONVIF 2.4, SDK, CGI

Storage
Internal HDD
1 SATA III Port, up to 6TB capacity for each HDD

HDD Mode
Single

Auxiliary Interface
USB
2 ports (1 Rear USB2.0, 1 Front USB2.0)

Electrical
Power Supply
Single, DC48V/2A
Power Consumption
NVR:
