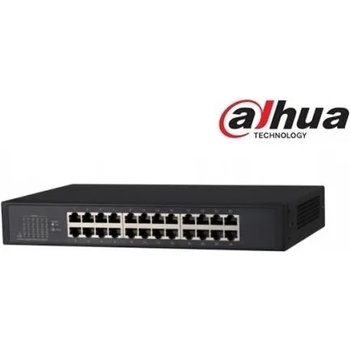

Dahua PFS3024-24GT

S3024-24GT

24-Port Unmanaged Gigabit Switch

> 24 × RJ-45 10/100/1000 ports.
> The all-gigabit ports transmit data without lag.
> Features aggregation mode which aggregates uplink ports.
> Features isolation mode which isolates all the ports from each other.
> With its solid full metal design, the device has great heat dissipation and no fan.
> Supports rack mount, wall mount and desktop mount.



BasicLayer



Layer 2

Switching Capacity



48 Gbps

Packet Forwarding Rate



35.712 Mpps

Description of Function Slots



Port 1-22: 22 × RJ-45 10/100/1000 Mbps;

Port 23-24: 2 × RJ-45 10/100/1000 Mbps (uplink)

Operating Temperature



–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity



5%–95% (RH), non-condensing

Storage Temperature



–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity



5%–95% (RH), non-condensing

Power Supply



Built in power supply: 100–240 VAC, 50/60 Hz, 0.4 A

Power Consumption



Idling: 2.7 W;

Full load: 12.3 W

Statics Protection



Air discharge: 8 kV;

Contact discharge: 6 kV

Lightning Protection



Common mode: 2 kV;

Differential mode: 0.5 kV

Net Weight



0.83 kg (1.82 lb)

Gross Weight



1.34 kg (2.95 lb)

Product Dimensions



294 mm × 119 mm × 44 mm (11.57" × 4.68" × 1.73") (L × W × H)

Packaging Dimensions



353 mm × 215 mm × 75 mm (13.9" × 8.46" × 2.95") (L × W × H)

Casing Material



Sheet Metal

Installation



Desktop mount; wall mount; rack mount

Certifications



CE

Hardware DIP Switch



Default: Default setting

Post isolation: Prevents traffic from being sent between ports 1-22, but allows ports 1-22 to send its traffic to the uplink ports 23-24. These uplink ports can also send their traffic to 1-22.

Port aggregation: Aggregates uplink ports.

PerformancePacket Buffer Size



8.4 Mbit

Jumbo Frame



12K Byte

MAC Table Size



16K

Communication Standard



IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3ad

FeatureLink Aggregation



Static link aggregation

Port Feature



IEEE 802.3x traffic control

IEEE 802.3x Flow Control



Yes
